Pcm Reprogramming For DTC P0134 / P0154 (TSB-06-13-007)

Publication date: 2006-04-01
Reference number: TSB-06-13-007

PCM REPROGRAMMING FOR DTC P0134 / P0154

PCM REPROGRAMMING FOR DTC P0134 / P0154

TECHNICAL SERVICE BULLETIN

Reference Number(s): TSB-06-13-007, Date of Issue:  April 01, 2006
MITSUBISHI: 2006 Lancer, Lancer Sportback, and Outlander; Galant

PURPOSE

On some affected vehicles, incorrect software parameters in the PCM may cause the MIL to illuminate and Diagnostic Trouble Code P0134 and/or P0154 ("Heated Oxygen Sensor Circuit No Activity Detected") to set in the PCM during engine warm-up. To eliminate this condition, reprogram the PCM as described in this bulletin.

AFFECTED VEHICLES

2006 Lancer, Lancer Sportback, and Outlander models equipped with 2.4L MIVEC engine

2006 Galant models equipped with A/T, 2.4L MIVEC engine and Calif, emissions

PROCEDURE

CAUTION: BATTERY VOLTAGE (AS MEASURED AT THE BATTERY POSTS WITHOUT ELECTRICAL LOAD) MUST BE 12.4V OR HIGHER IN ORDER TO REPROGRAM THE PCM.
IMPORTANT: Verify whether the vehicle is K-Line Flash or CAN-Flash. Refer to the "Reprogramming System Identification" chart on the Service Tech Resources page on the Mitsubishi Dealer Link.  The procedure for PCM reprogramming on CAN-Flash vehicles is different than K-Line Flash vehicles. Be sure to follow the correct reprogramming instructions for the vehicle being repaired.
  1. Check the underside of the hood to verify that there is no label previously installed to indicate that this TSB reprogramming has already been done.
  2. Using the MUT-III, verify that the vehicle's ECU part number is listed in the table in Step  7. If the Software P/N is the same as or higher than the Software P/N in the table, the PCM has already been reprogrammed for this concern. Do not continue with this bulletin procedure. Refer to Group 13 in the appropriate service manual to diagnose the DTC.
  3. Use the MUT-III to erase all DTCs set in the PCM.
  4. Verify that your MUT-III is at STV Version 13.1 or higher, and that it has the most current version of the reprogramming database:
    1. Select "Special Function", then select "ECU Reprogramming."
    2. Select "Database File Display". The database version is displayed in the top right corner of the screen. Make sure the database version is N06031 or greater.
    3. If the database version is N06031 or greater  , reprogram the PCM as described in Step 5 (for CAN- Flash vehicles) or Step  6 (for K-Line Flash vehicles).
    4. If the database version is less than N06031  , you must transfer the new reprogramming data from the Reflash Update CD 4/06 to the MUT-III hard drive as follows:
      1. Install Reflash Update CD 4/06  into the PC's DVD-ROM drive.
      2. Follow the instructions on the screen. The system will automatically transfer the reprogramming data onto the PC's hard drive.

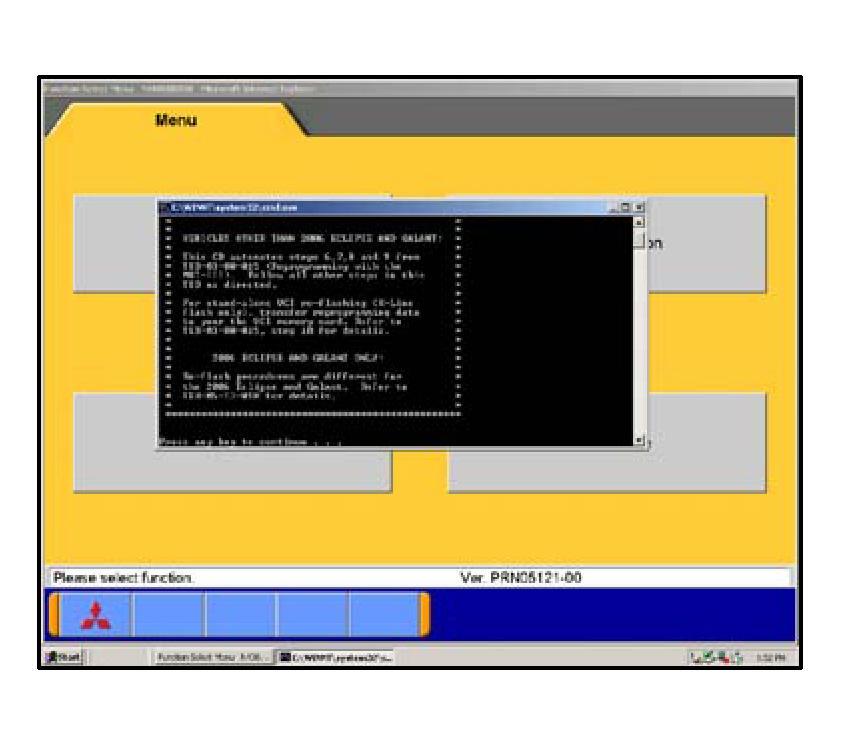

        Fig 1: Display - Reprogramming Data
        G04156011
  5. CAN-FLASH VEHICLES ONLY:
    IMPORTANT: DO NOT DISCONNECT THE MUT-III LAPTOP. DO NOT USE VCI STANDALONE REPROGRAMMING.

    The following equipment is required for PCM reprogramming on CAN-Flash vehicles:

    • MUT-III PC
    • Reprogramming Database on DVD-ROM (Reflash Update CD 4/06  or later for this concern)
    • VCI (Vehicle Communication Interface) - MB991824
    • MUT-III main harness A (blue) - MB991910
    • USB 2.0 cable - MB991827
    • "Engine Compartment/Control Module" labels - p/n MSSF-024G-00

    Connect this equipment in the same manner as for normal vehicle diagnosis. When reprogramming a CAN-Flash vehicle, the VCI and MUT-III laptop must be connected. DO NOT use VCI Standalone on CAN-Flash vehicles.

    1. In the MUT-III System Select menu, click on the car symbol at the bottom of the screen.

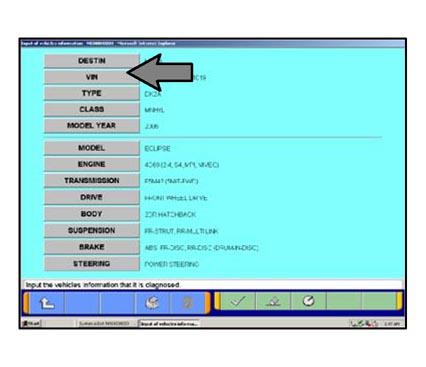

      Fig 2: Display - Select VIN
      G04156012

      Select VIN. Then type in the VIN.

    2. Connect the VCI to the vehicle.

      DO NOT DISCONNECT THE LAPTOP.

    3. Select "Special Function."

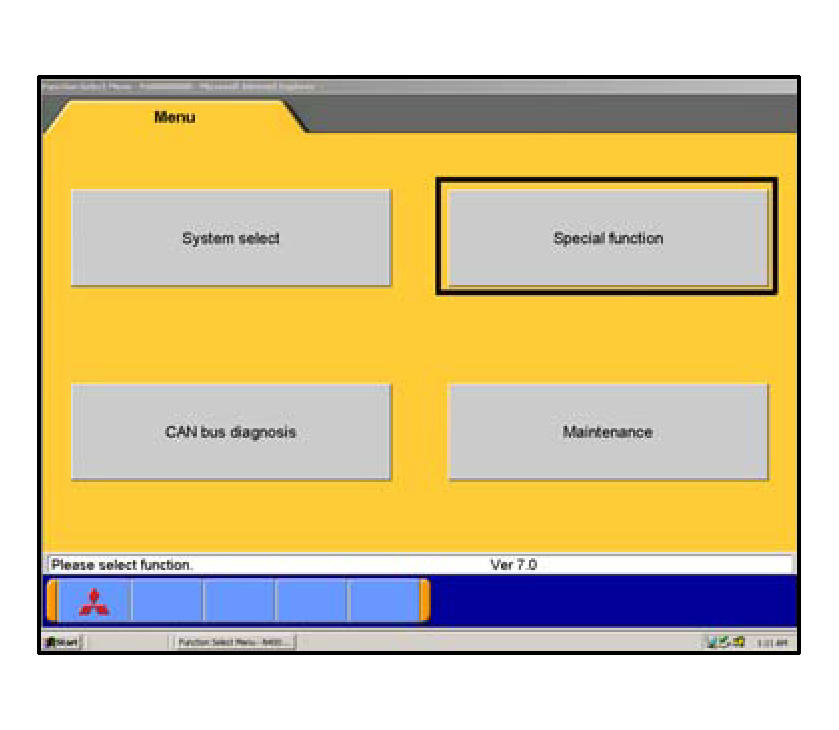

      Fig 3: Display - Special Function
      G04156013
    4. Select "ECU reprogramming."

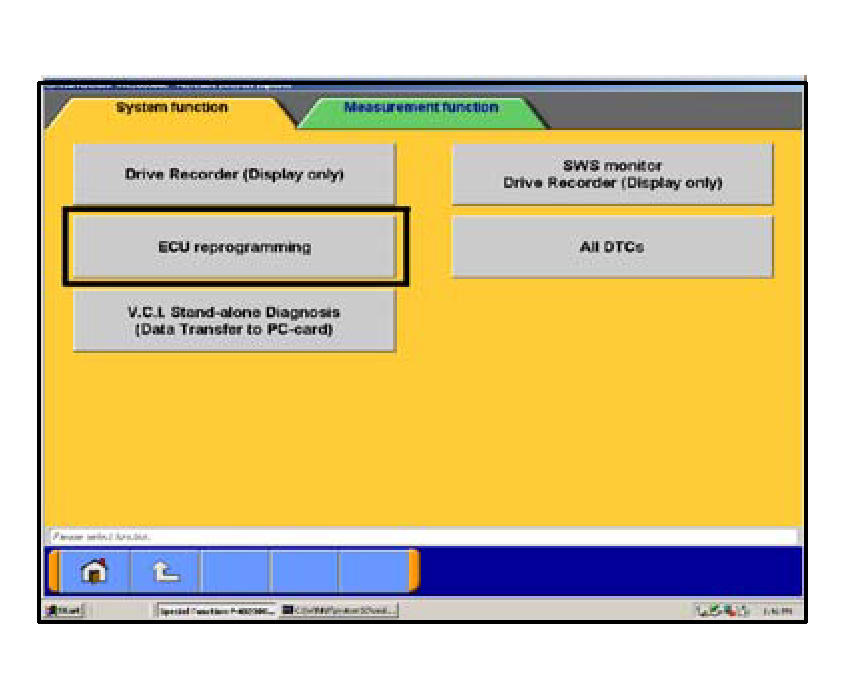

      Fig 4: Display - ECU Reprogramming
      G04156014
    5. Select "Automatic Reprogramming (CAN)."

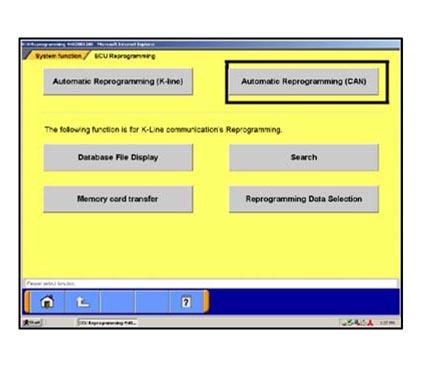

      Fig 5: Display - Automatic Reprogramming
      G04156015
    6. Select Engine and Transmission, then click on the check mark.

      A message will advise you that the system will "Automatic Search the data."

      Click on the check mark to continue.

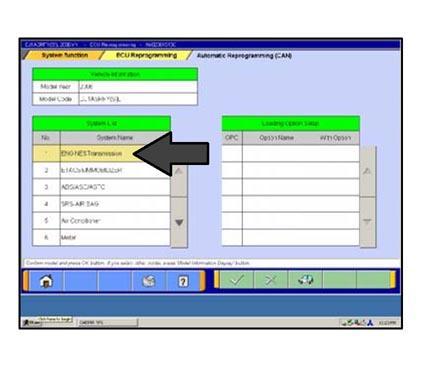

      Fig 6: Display - Automatic Search Data
      G04156016

      If the PCM is already reprogrammed for this concern, this screen will display. If this message displays, do not continue with this reprogramming procedure.

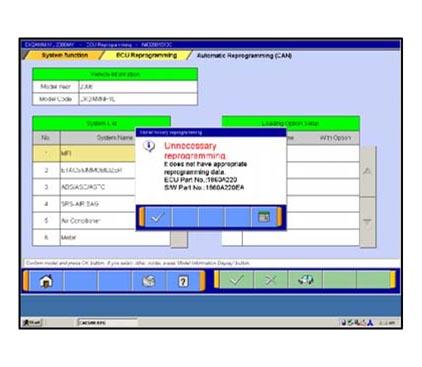

      Fig 7: Display - Message
      G04156017
      CAUTION: DO NOT DISTURB THE HARNESS CABLES OR CONNECTIONS. INTERRUPTION DURING THE PROGRAMMING PROCESS COULD CAUSE THE PCM TO LOSE DATA OR PREVENT FUTURE PCM REPROGRAMMING.
    7. The CAN database screen will display.

      (If more than one row is displayed in the table, select the appropriate ECU part number.)

      Click on the check mark to begin reprogramming.

      NOTE: It will take up to 10 minutes to complete the reprogramming.

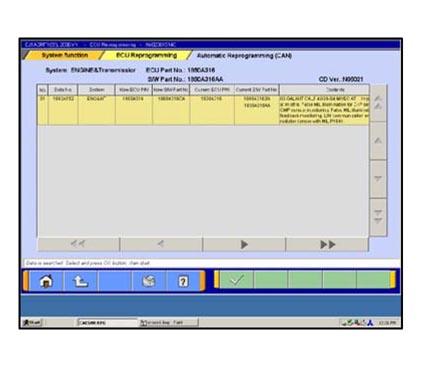

      Fig 8: Display - CAN Database Screen
      G04156018
    8. This message will display when the reprogramming is successfully completed.

      Go to Step  7 to complete this bulletin procedure.

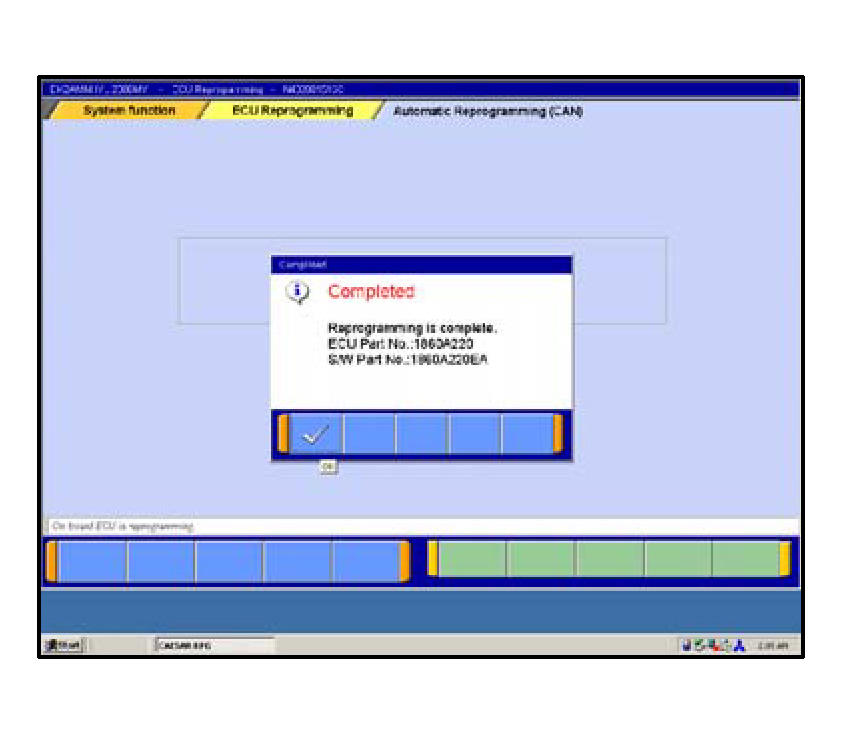

      Fig 9: Display - Message
      G04156019
  6. K-LINE FLASH VEHICLES ONLY:
    1. If you just transferred the new reprogramming data from the Reflash Update CD 4/06 to the MUT-III hard drive, now transfer the reprogramming data from the MUT-III laptop to the memory card. (Use the port on the left side of the MUT-III laptop.) Select ECU Reprogramming  , then Memory Card Transfer.  A status bar will display while the data is loading into the memory card.

      When the memory card data transfer is complete, remove the memory card from the laptop and install it in the VCI.

    2. Connect the following equipment in the same manner as for normal vehicle diagnosis:
      • MUT-III PC
      • Reprogramming Database on DVD-ROM (Reflash Update CD 4/06  or later for this concern)
      • VCI (Vehicle Communication Interface) - MB991824
      • MUT-III main harness B (red) - MB991911
      • Outlander models only: 12-13 pin adapter MB991855
      • USB 2.0 cable-MB991827
        Fig 10: Connecting VCI To Vehicle
        G04156020
    3. Connect the VCI to the vehicle.
    4. Disconnect the MUT-III laptop.
    5. IMPORTANT: Lancer and Outlander models equipped with ABS: With the ignition key OFF, unplug the ABS fuse (7.5 amp fuse in the junction box in the passenger compartment  ). Refer to the service manual for exact fuse location in the box.
    6. Reprogram the PCM, using "Automatic reprogramming" on the VCI. It will take up to 20 minutes to complete the reprogramming.
      CAUTION: DO NOT DISTURB THE HARNESS CABLES OR CONNECTIONS. INTERRUPTION DURING THE PROGRAMMING PROCESS COULD CAUSE THE PCM TO LOSE DATA OR PREVENT FUTURE PCM REPROGRAMMING.

      If the message "ECU at Current Level of VCI" appears, the PCM did not reprogram. Verify that the ROM ID is the same as the ROM ID listed in the table in Step 7.

      • If the ROM ID is the same or higher than the ROM ID in the table, the PCM has already been reprogrammed for this concern. Do not continue with this reprogramming procedure.
      • If it is not, verify that the correct database update is in the MUT-III. Verify the correct database was transferred to the memory card, and that the memory card is properly installed in the VCI.
  7. After reprogramming, the new ECU part number and software part number will display. Verify that they are the same as those listed below. Note this information.
    DISPLAY - ON MUT-III AFTER REPROGRAMMING (GALANT)

      DISPLAY ON MUT-III AFTER REPROGRAMMING
    MODEL ECU P/N MUT-III REFLASH DATABASE ECU P/N Software P/N (ROM ID) VENDOR #
    2006 Galant 2.4L MIVEC A/T Calif. emissions 1860A316 1862A552 1860A316 1860A316CA E6T41683H20
    DISPLAY - ON MUT-III AFTER REPROGRAMMING (OUTLANDER)

    2006 Outlander 2.4L MIVEC M/T 4WD 1860A473 VN0601A 1860A473 C84611 E6T38990H1
    2006 Outlander 2.4L MIVEC M/T 2WD 1860A472 VN06019 1860A472 C84511 E6T38989H1
    2006 Outlander 2.4L MIVEC A/T 4WD 8631A118 VN06018 8631A118 E84810 E6T45579H10
    2006 Outlander 2.4L MIVEC A/T 2WD 8631A117 VN06017 8631A117 E84710 E6T45578H10
    DISPLAY - ON MUT-III AFTER REPROGRAMMING (LANCER)

    2006 Lancer 2.4L MIVEC M/T 1860A420 VN06016 1860A420 C82810 E6T34899H1
    2006 Lancer/Lancer Sportback 2.4L MIVEC A/T 1860A421 VN06015 1860A421 E82911 E6T37979H10
  8. Turn the ignition switch to OFF. Disconnect the MUT-III from the vehicle. Wait at least 10 seconds, then start the engine to verify proper operation.
  9. Using a ball-point pen, enter the appropriate PCM part number, vendor number, ROM ID, this TSB number (TSB-06-13-007), your dealer code, and the current date on the Engine Compartment and Control Module Label (part no. MSSF-024G-00).
    Fig 11: Identifying Control Module Label
    G04156021
  10. Carefully remove all dirt and oil from a vacant area near the VECI label on the underside of the hood, and affix the Engine Compartment label.
  11. Affix the Control Module Label to the PCM.
  12. Lancer and Outlander models equipped with ABS: Reconnect the ABS fuse. Confirm no DTC is set.
  13. Test drive the vehicle to confirm proper operation and no MIL illumination.

WARRANTY INFORMATION

PCM Reprogramming for DTC P0134 / P0154

Nature Code:  990 Cause Code:  490

Labor Operation No.  13850195 Time Allowance:  0.3 hr.

Warranty Coverage:  8 years / 80,000 miles

Special Warranty Information:  Normal warranty procedures apply.
