CD Player Connector End View (C-103)

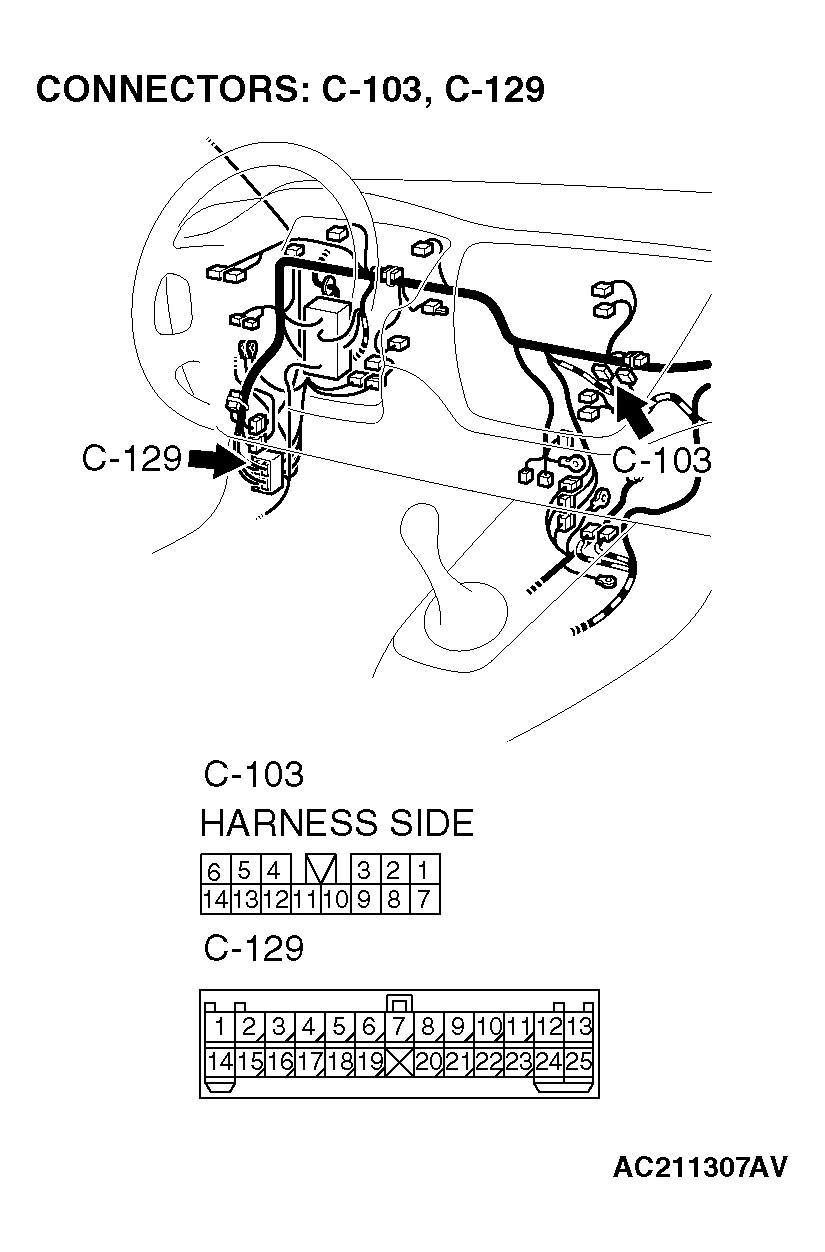

Fig 1: CD Player Connector End View (C-103)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
