>> A << Front Seat Assembly Installation

  1. Temporarily tighten the nuts and bolts in all mounting locations shown in the illustration with no load applied to the front seat cushion, and check the operation of the seat slide.
  2. Tighten the nuts and bolts in all mounting locations to the specified torque.

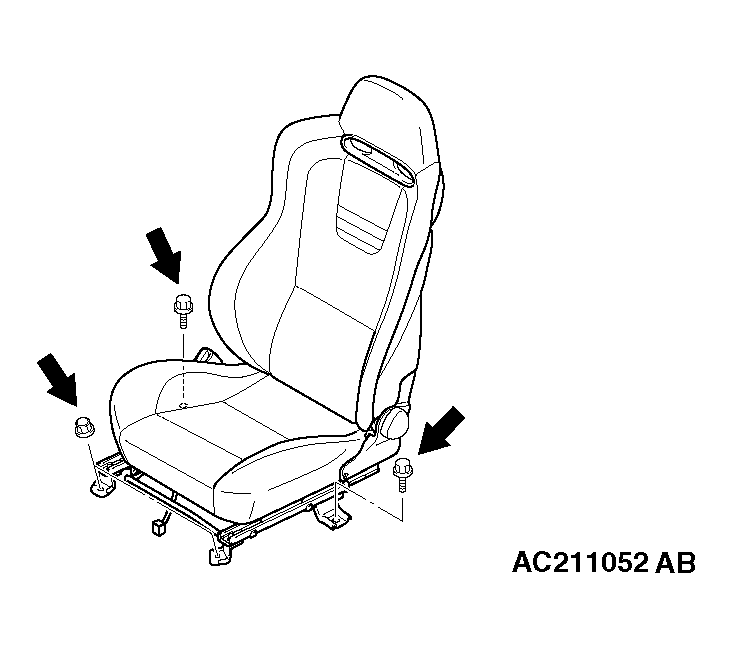

    Fig 1: Tightening Nuts And Bolts
    G04297867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
