<< A >> Console Lid Assembly Removal

Insert the special tool MB990784 into the hinges of the console lid assembly and the rear floor console through the ashtray mounting hole to pry for removal.

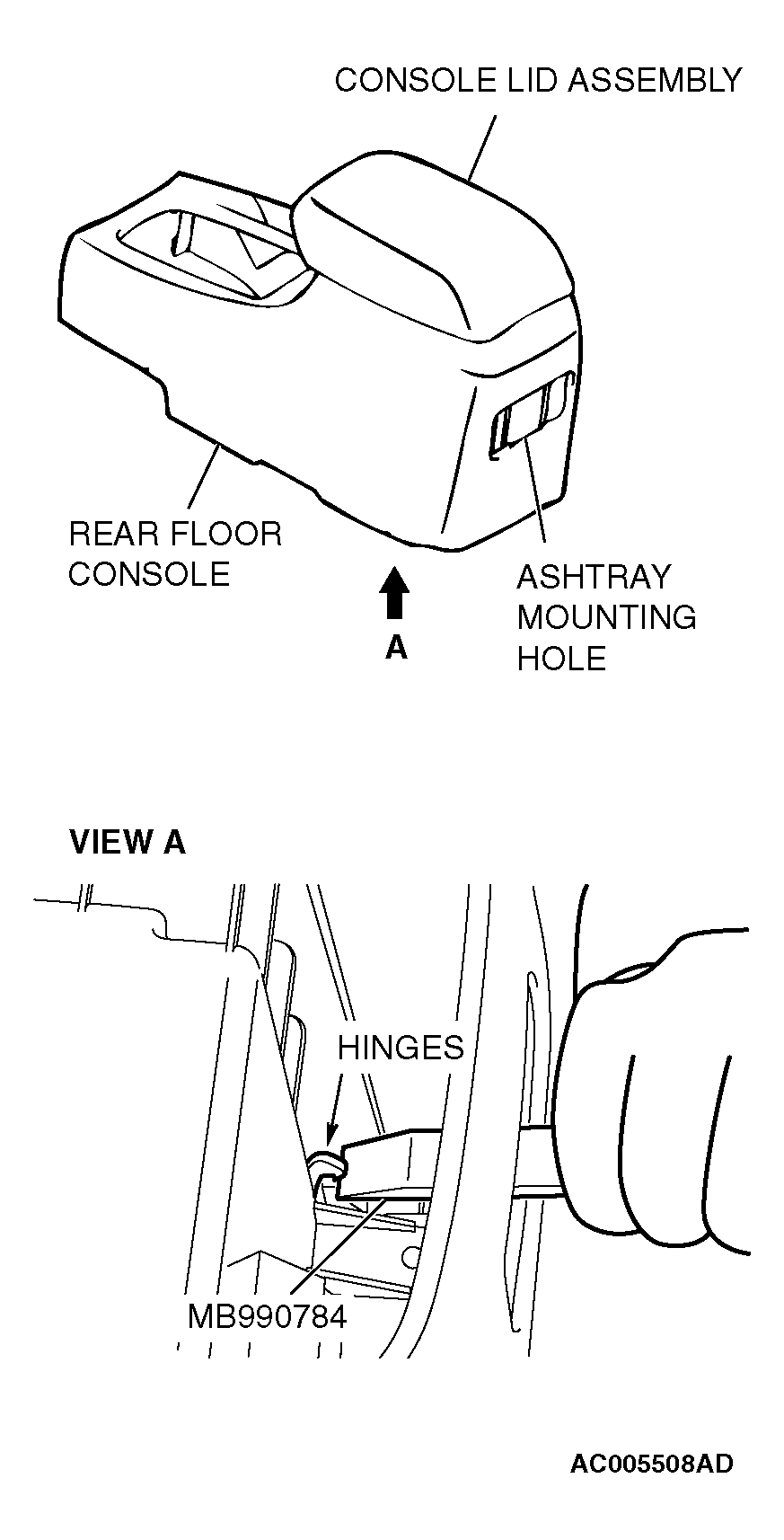

Fig 1: Inserting Special Tool Into Hinges Of Console Lid Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
