Disassembly And Assembly

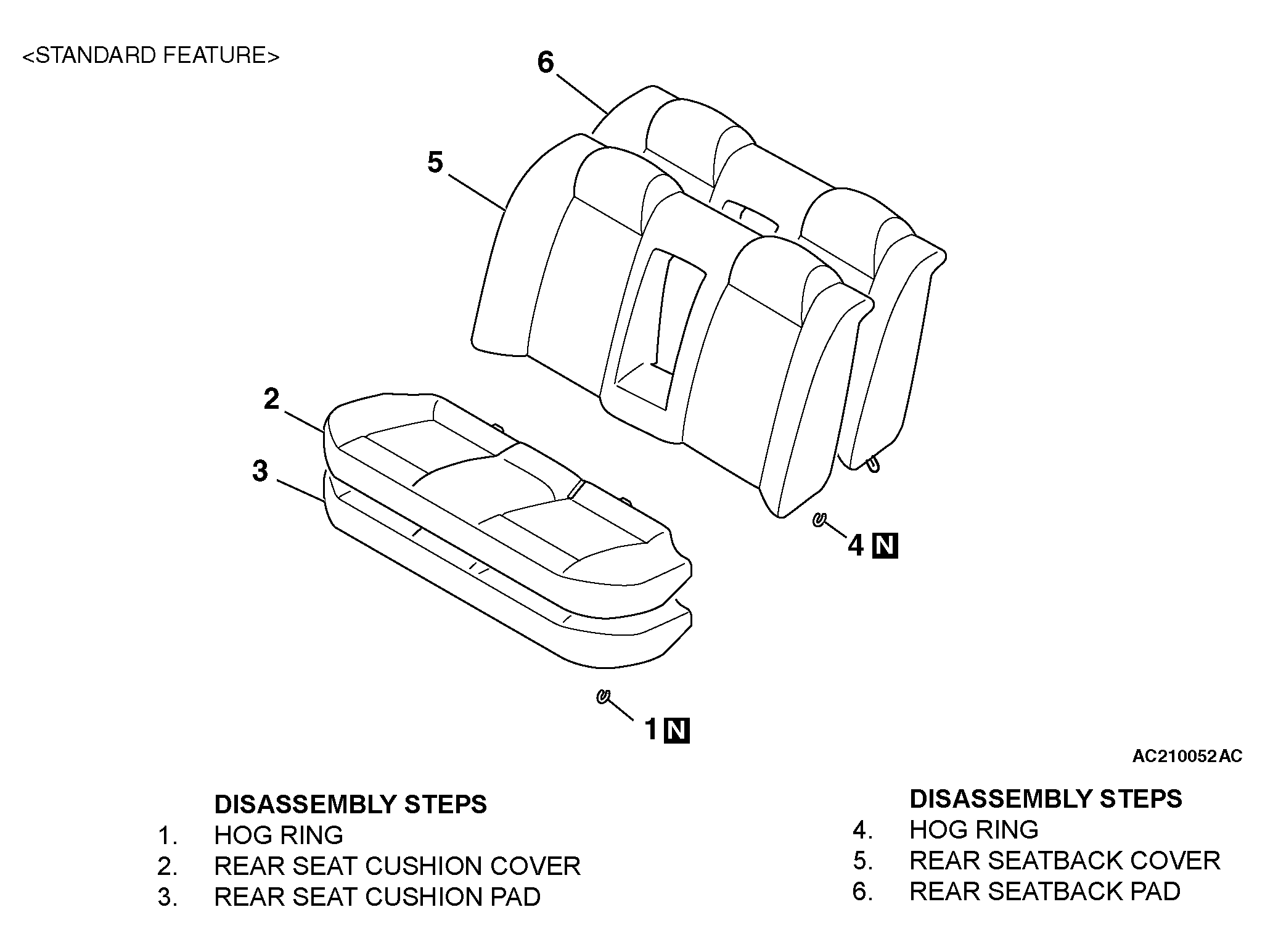

Fig 1: Disassembling/Assembling Rear Seat Assembly (1 Of 2)
G04297873Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

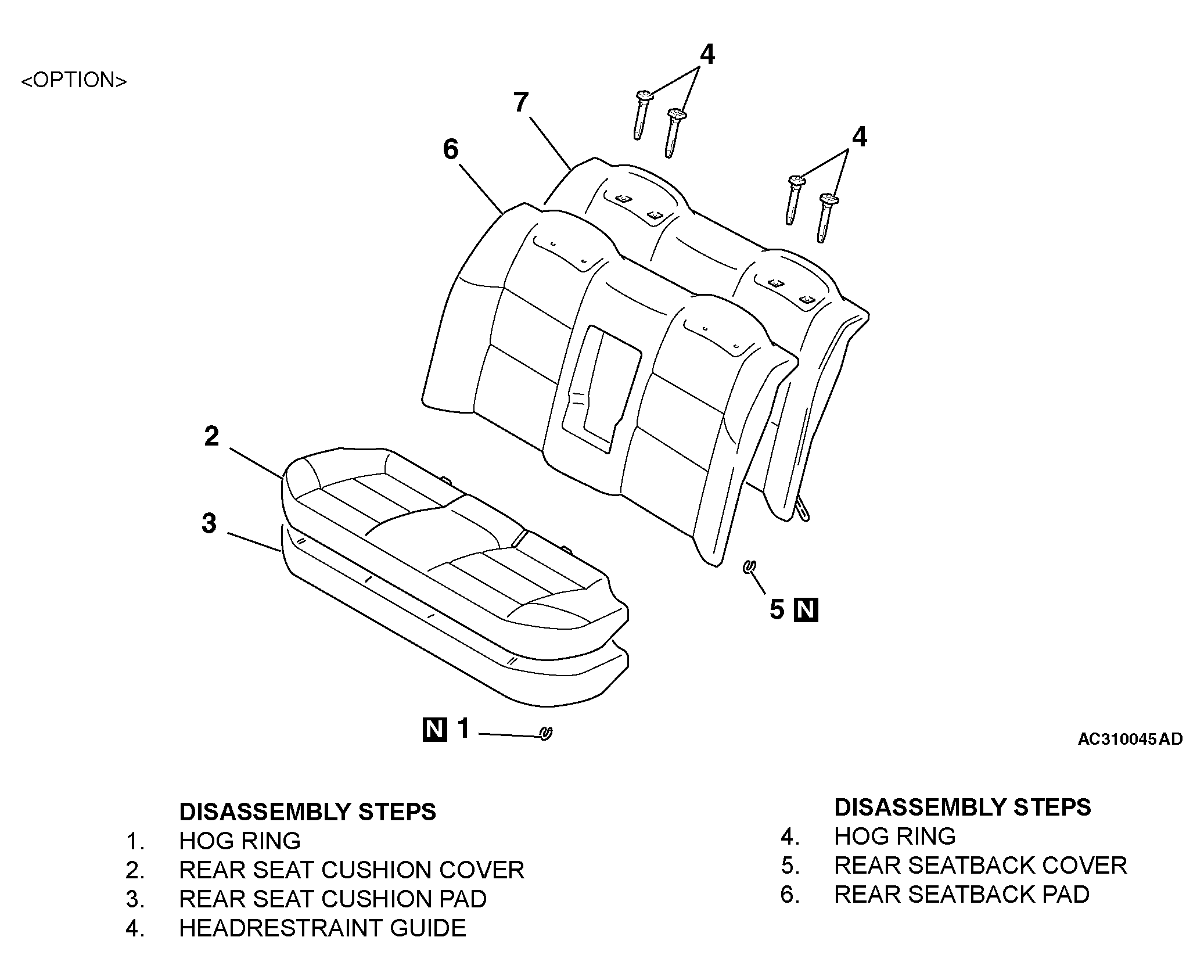

Fig 2: Disassembling/Assembling Rear Seat Assembly (2 Of 2)
G04297874Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
