DTC 41: IG1 Power Supply Circuit System (Fuse No.2 Circuit): Notes

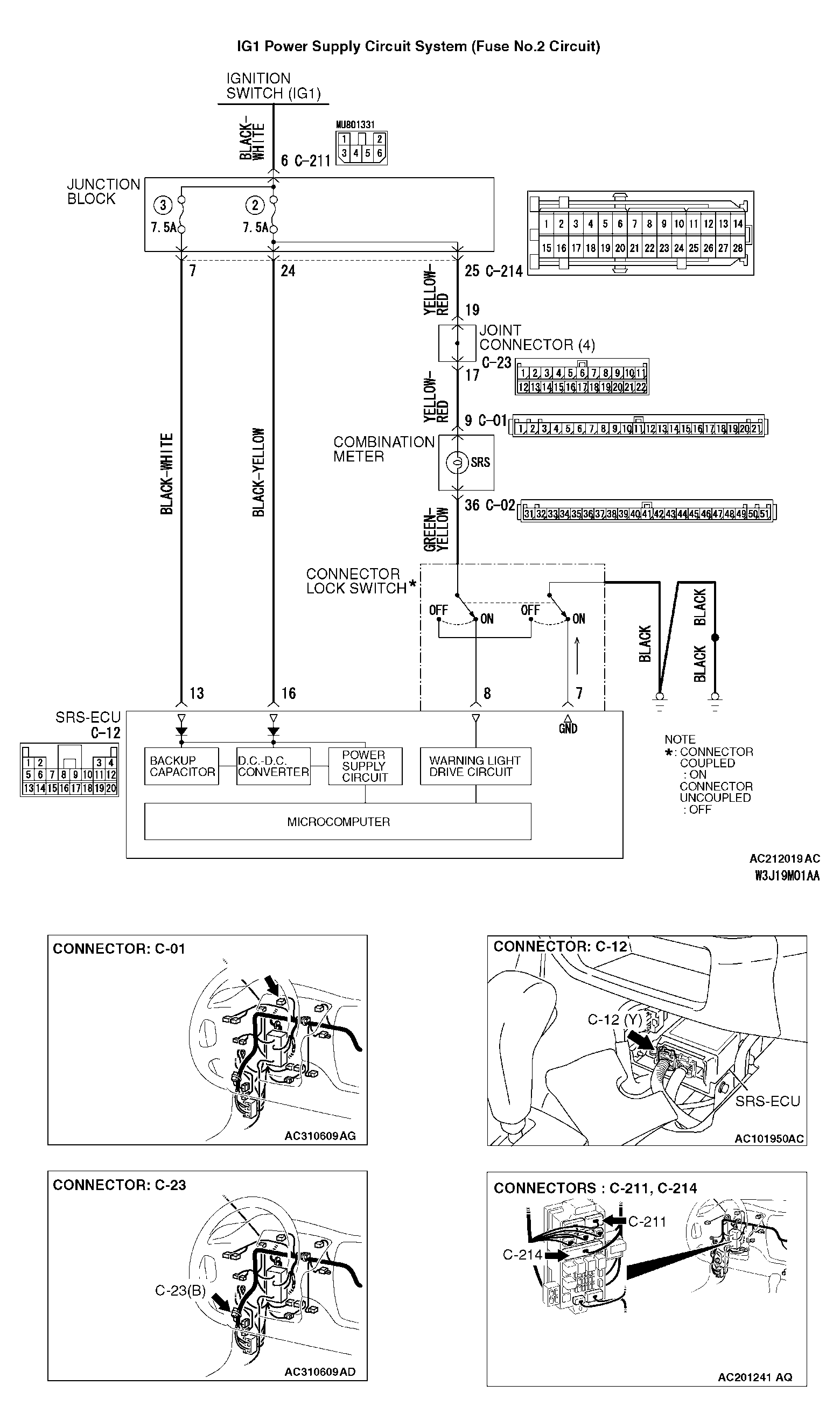

Fig 1: IG1 Power Supply Circuit System (Fuse No.2 Circuit) Diagram
G04298013Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
