DTC 65: Passenger's (Front) Air Bag Module (Squib) System Fault for Ground Circuit (Short-Circuited to Ground): Diagnosis

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: V.C.I.
  • MB991827: M.U.T.-III USB Cable
  • MB991911: M.U.T.-III Main Harness B
• MB991865: Dummy resister
• MB991866: Resister harness

1. STEP 1. Check the passenger's (front) air bag module (Using scan tool MB991958, read the diagnostic trouble code).
   1. Disconnect the negative battery terminal.
   2. Disconnect passenger' (front) air bag module connector C-106.

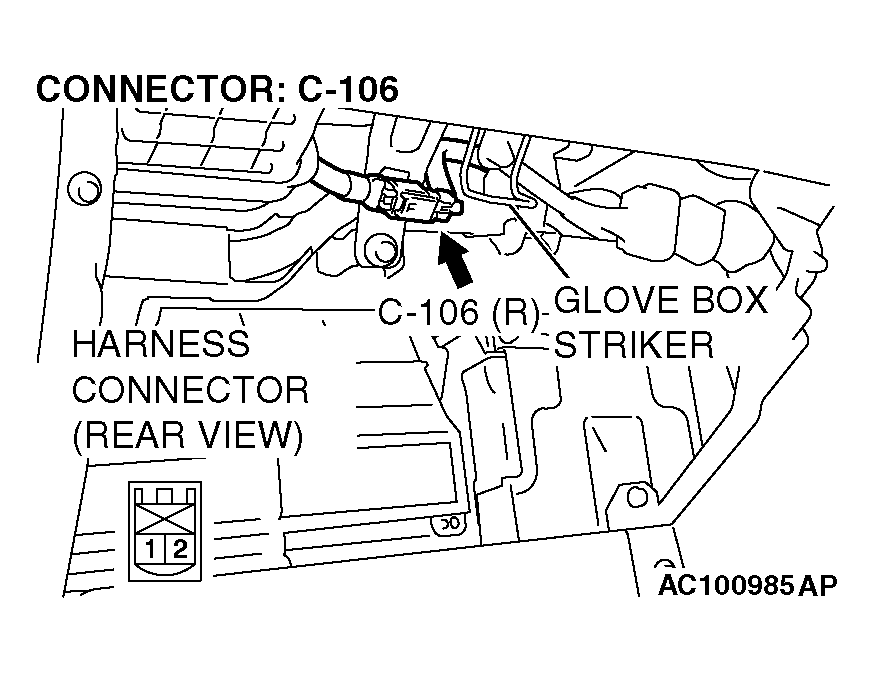

      Fig 1: Disconnecting Passenger' (Front) Air Bag Module Connector C-106

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   3. Connect special tool MB991865 to special tool MB991866.
      CAUTION: Do not insert a test probe into the terminal from its front side directly, as the connector contact pressure may be weakened.
   4. Disconnect the passenger's (front) air bag module connector C-106, and insert special tool MB991866 into the harness connector by backprobing.
   5. Connect the negative battery terminal.
   6. Erase the diagnostic trouble code memory, and check the diagnostic trouble code.

   Q: Is DTC 65 set?

   YES:  Go to Step 2.

   NO:  Replace the passenger's (front) air bag module (Refer to AIR BAG MODULE(S) AND CLOCK SPRING  ). Then go to  Step 4.

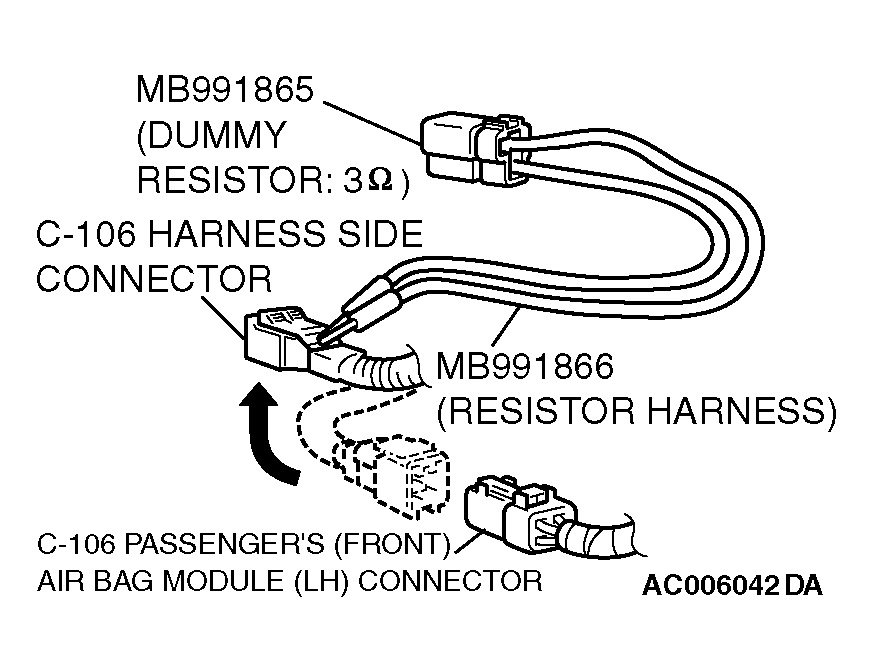

   Fig 2: Inserting Special Tool Into Harness Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Check the passenger's (front) air bag module circuit at the SRS-ECU connector C-12.
   1. Disconnect SRS-ECU connector C-12.
      Fig 3: Identifying Connector C-12 Terminals

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

      DANGER

      To prevent the air bag from deploying unintentionally, disconnect the passenger's (front) air bag module connector C-106 to short the squib circuit.

   2. Disconnect the passenger's (front) air bag module connector C-106.
      Fig 4: Disconnecting Passenger's (Front) Air Bag Module Connector C-106

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      CAUTION: Do not insert a test probe into the terminal from its front side directly, as the connector contact pressure may be weakened.
   3. Check for continuity between C-12 harness connector terminals 9, 10 and body ground.

      It should be open circuit.

   Q: Does continuity exist?

   YES:  Go to Step 3.

   NO:  Erase the diagnostic trouble code memory, and check the diagnostic trouble code. If DTC 65 set, replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU)  ). Then go to  Step 4.

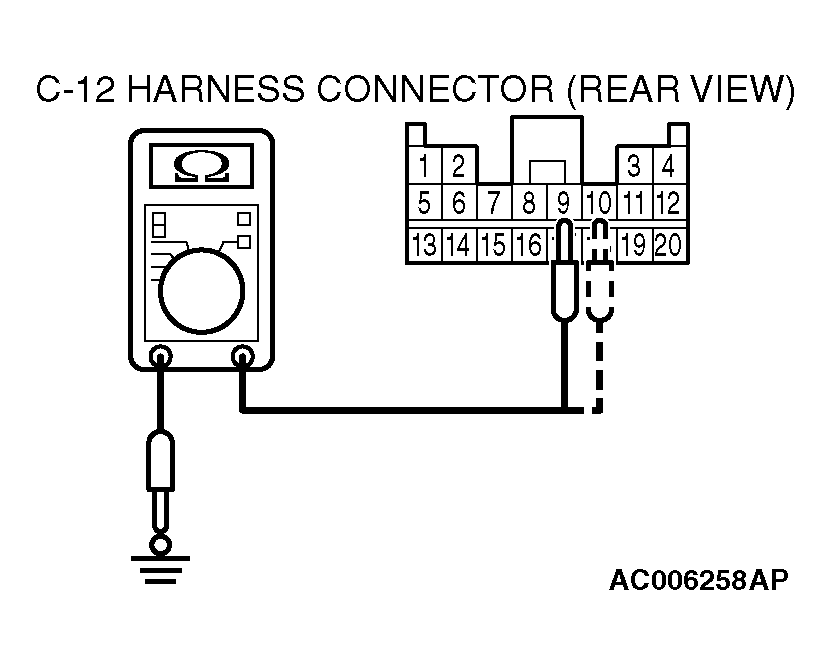

   Fig 5: Checking Continuity Between C-12 Harness Connector Terminals 9, 10 And Body Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. STEP 3. Check the harness wires for short circuit to ground between SRS-ECU connector C-12 (terminal No.9 and 10) and passenger's (front) air bag module connector C-106 (terminal No.1 and 2).

   Q: Are the harness wires between SRS-ECU connector C-12 (terminal No.9 and 10) and passenger's (front) air bag module connector C-106 (terminal No.1 and 2). good condition?

   YES:  Go to Step 4.

   NO:  Repair the harness wires between SRS-ECU connector C-12 and passenger's (front) air bag module connector C-106. Then go to Step 4.

   Fig 6: Identifying Connector C-12 Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   Fig 7: Identifying Passenger's (Front) Air Bag Module Connector C-106

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. STEP 4. Recheck for diagnostic trouble code.

   Check again if the DTC is set.

   1. Erase the DTC.
   2. Turn the ignition switch to the "ON" position.
   3. Check if the DTC is set.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

   Q: Is DTC 65 set?

   YES:  Return to  Step 1.

   NO:  The procedure is complete (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION ).

   Fig 8: Connecting Scan Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
