>> B << Post-Installation Inspection

  1. Connect the negative (-) battery cable.
  2. Turn the ignition switch to the "ON" position.
  3. Does the SRS warning light illuminate for approximately seven seconds, and then goes out?
  4. If yes, the SRS system is functioning properly. If no, refer to SRS WARNING LIGHT CHECK  .

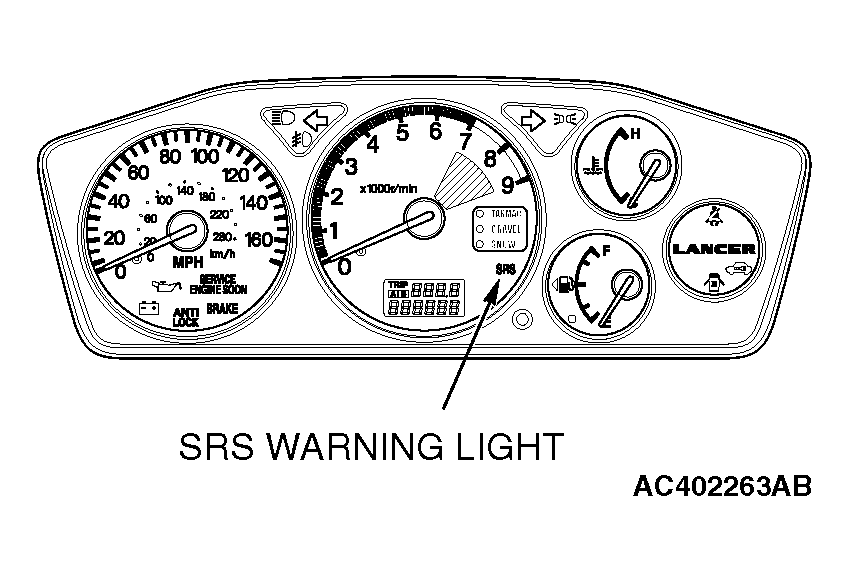

    Fig 1: Identifying SRS Warning Light
    G04298198Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
