Special Tools
SPECIAL TOOLS CHART
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

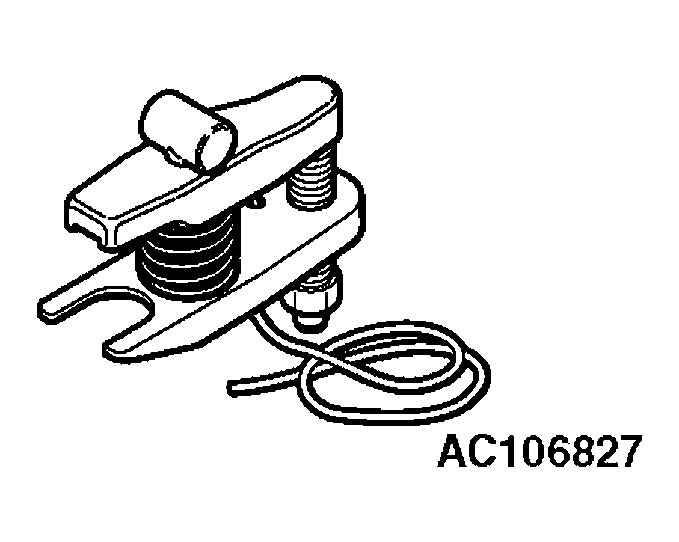

| MB991897 Ball joint remover |
MB991113-01, MB990635-01 or general service tool | Tie rod end disconnection
NOTE:
Steering linkage puller (MB990635 or MB991113) is also used to disconnect knuckle and tie rod end ball joint.
|
|

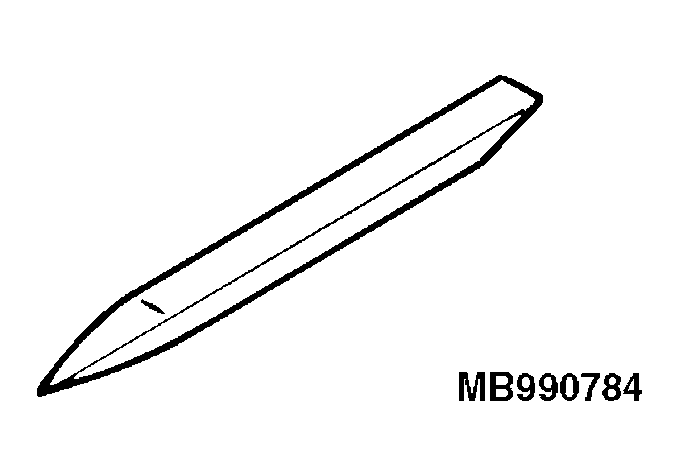

| MB990748 Ornament remover |
General service tool | Cover removal | |

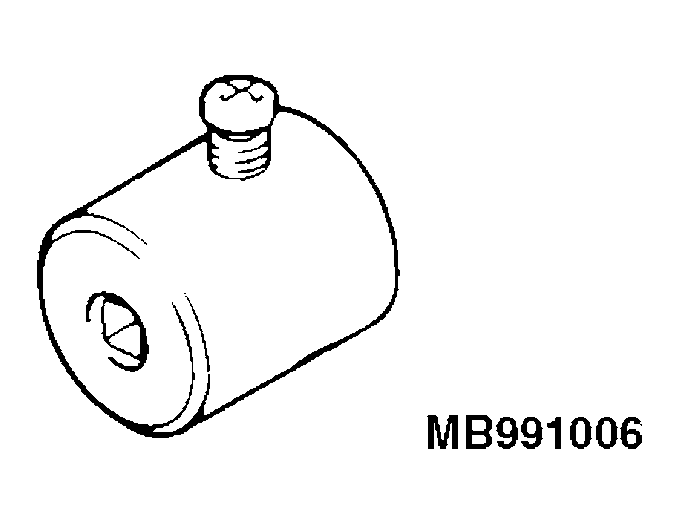

| MB990228 or MB991006 Preload socket |
MB990228-01 | Gear box total pinion torque check | |

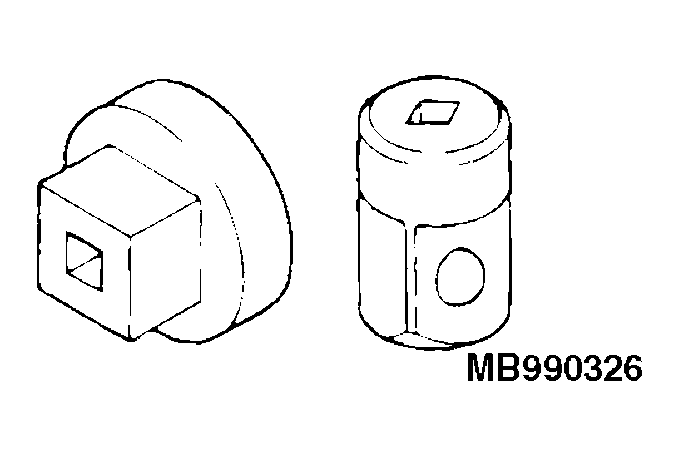

| MB990326 Preload socket |
General service tool | Tie rod end ball joint breakaway torque check | |

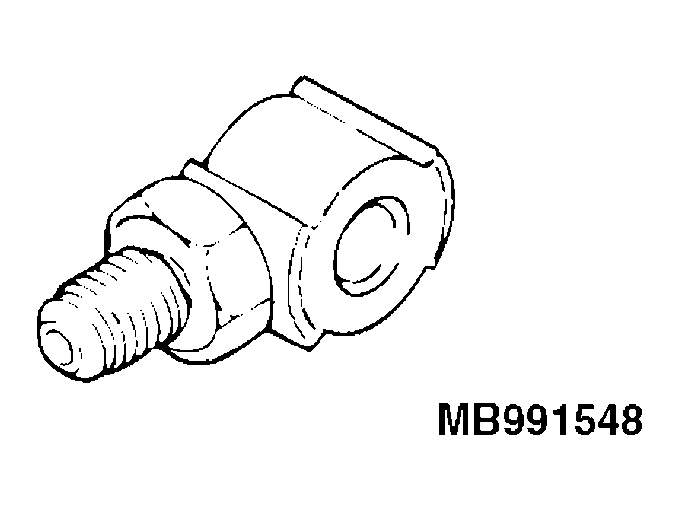

| MB991548 Power steering oil pressure gauge adapter (Pump side) |
MB991548-01 | Oil pump pressure test | |

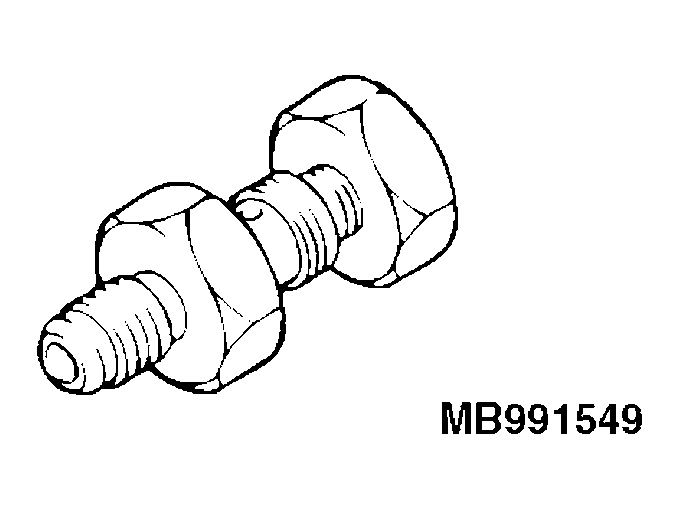

| MB991549 Power steering oil pressure gauge adapter (Hose side) |
MB991549-01 | ||

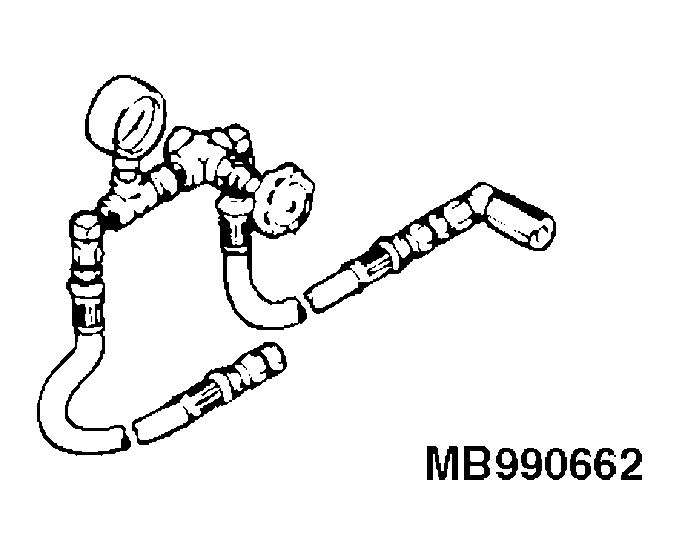

| MB990662 Oil pressure gauge assembly |
MB990662-01 | ||

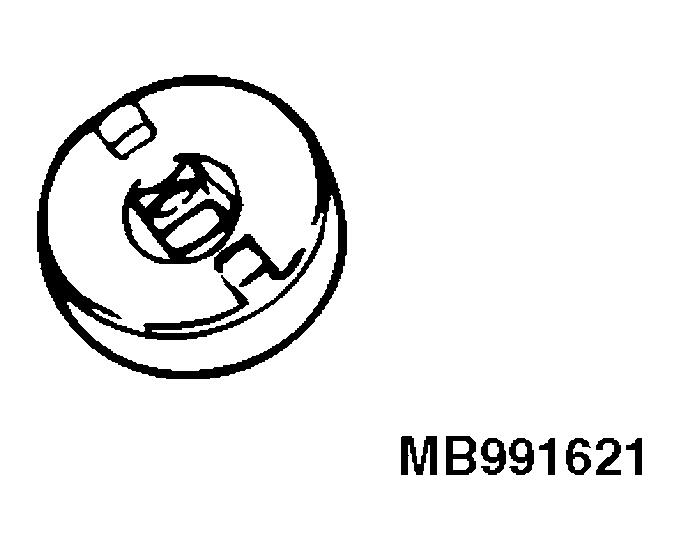

| MB991621 Rack support cover wrench |
- |
|
|

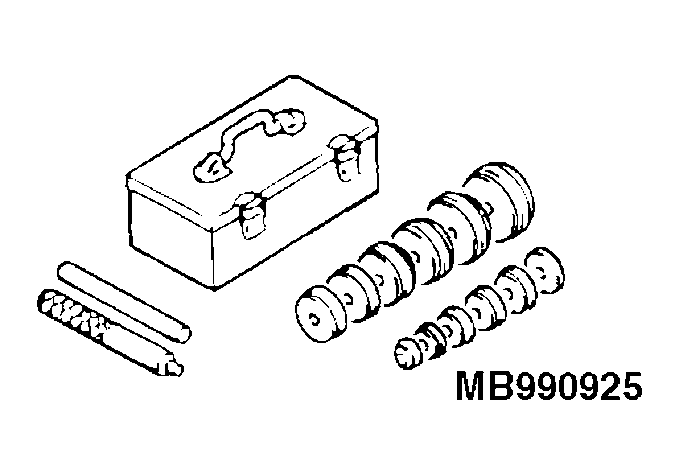

| MB990925 Bearing and oil seal installer set |
MB990925-01 or general service tool |
|
|

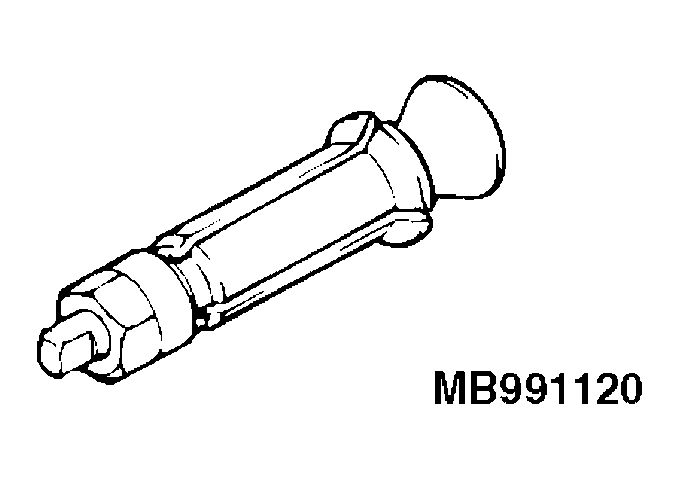

| MB991120 Needle bearing puller |
Tool not available | Needle roller bearing removal | |

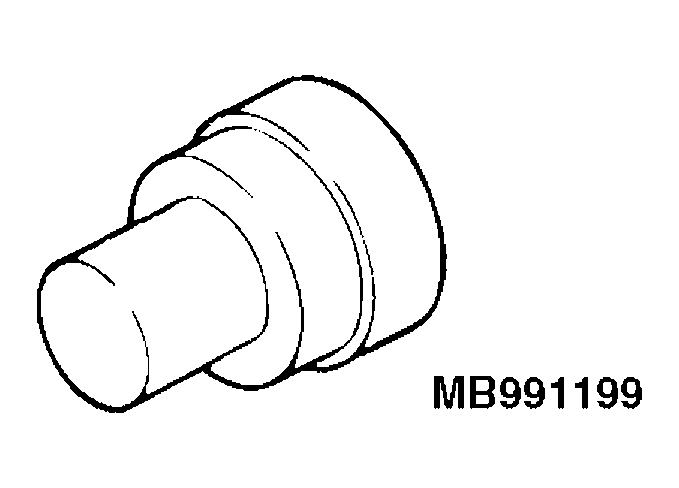

| MB991199 Oil seal and bearing installer |
General service tool |
|
|

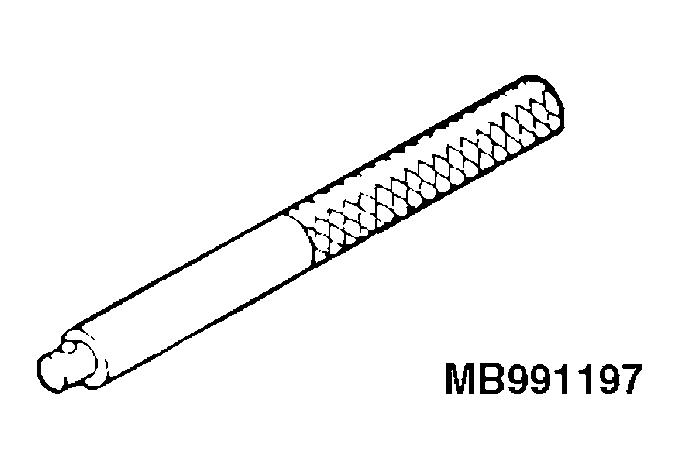

| MB991197 Bar (long type) |
General service tool | ||

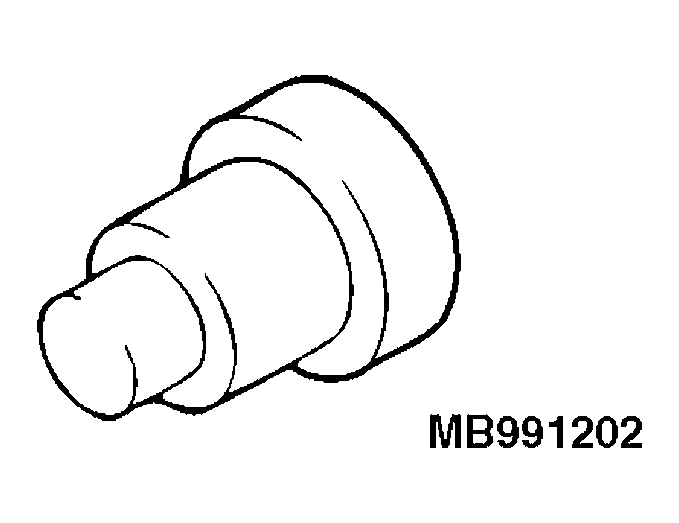

| MB991202 Oil seal and bearing installer |
- |
|
|
| MB991214 Rack installer |
- | Rack installation | |

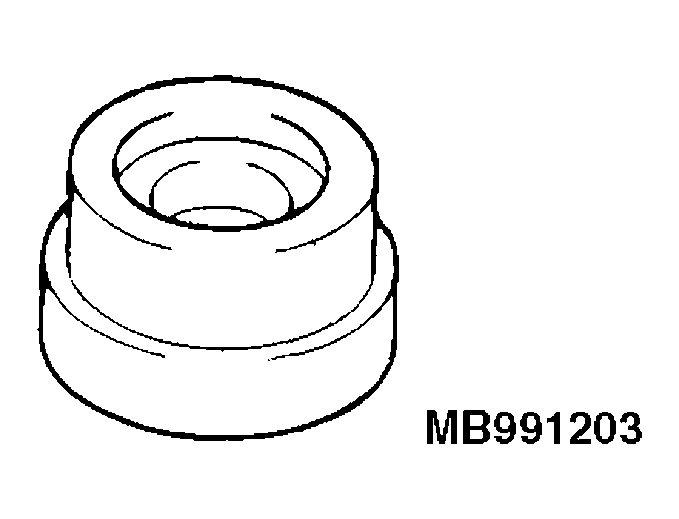

| MB991203 Oil seal and bearing installer |
Tool not available | Oil seal and bearing installation | |
| MB991317 Seal ring installer |
Tool not available | Seal ring installation | |

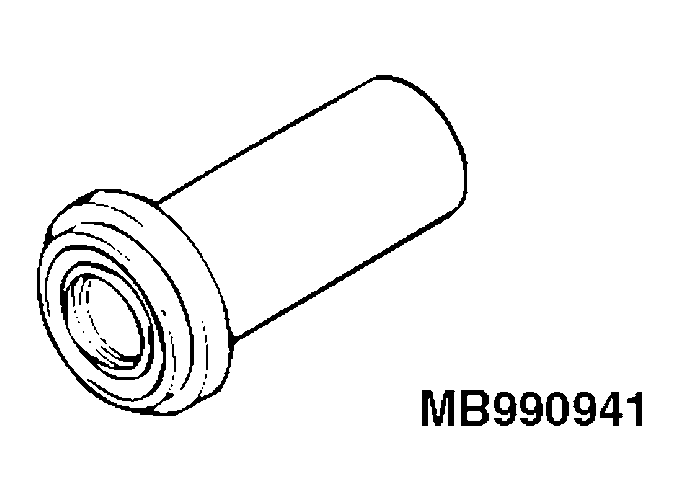

| MB990941 Torque tube bearing installer |
MB990941-01 or general service tool | Valve housing oil seal installation | |

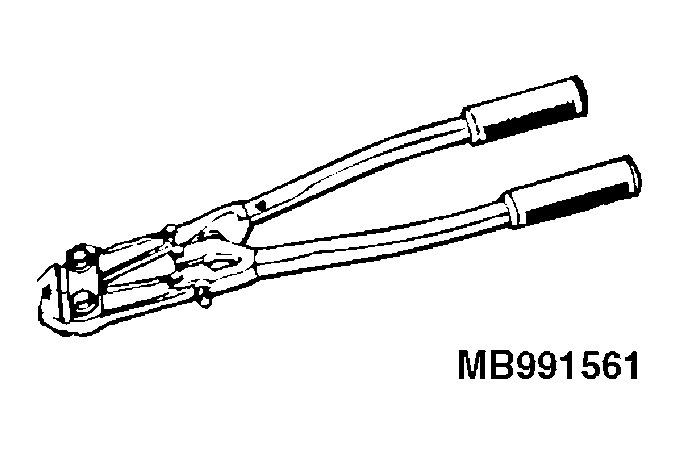

| MB991561 Boot band crimping tool |
MB991561 | Bellows band installation | |

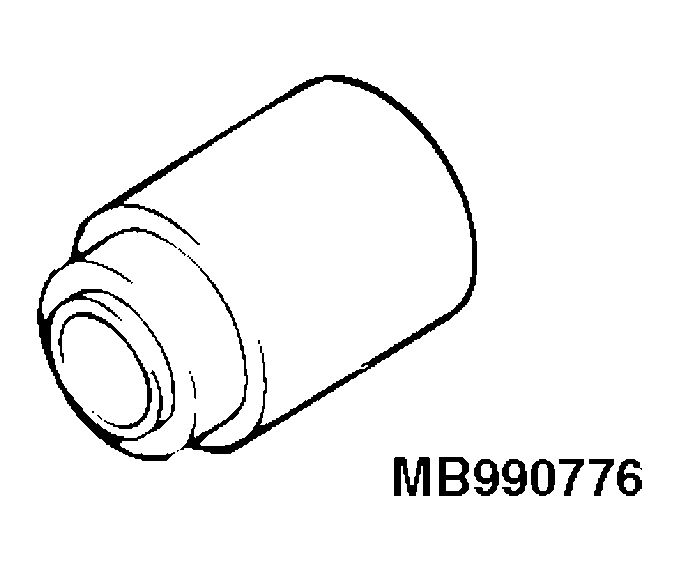

| MB990776 Front axle base |
MB990776-01 | Dust cover installation |
