>> A << Oil Seal Installation

  1. Apply a coating of GENUINE MITSUBISHI POWER STEERING FLUID to the both sides of the oil seal.
  2. Using special tools MB991199 and MB991197, press the oil seal into the rack housing.

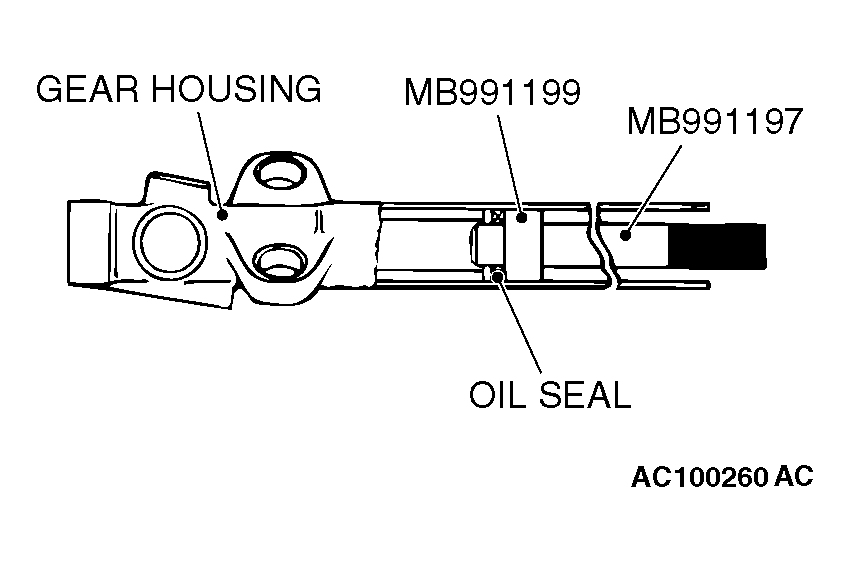

    Fig 1: Pressing Oil Seal Into Rack Housing
    G04297622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
