>> L << Gear Mounting Rubber Installation

Install the gear mounting rubber to the rack housing so that the distance is as shown in the illustration.

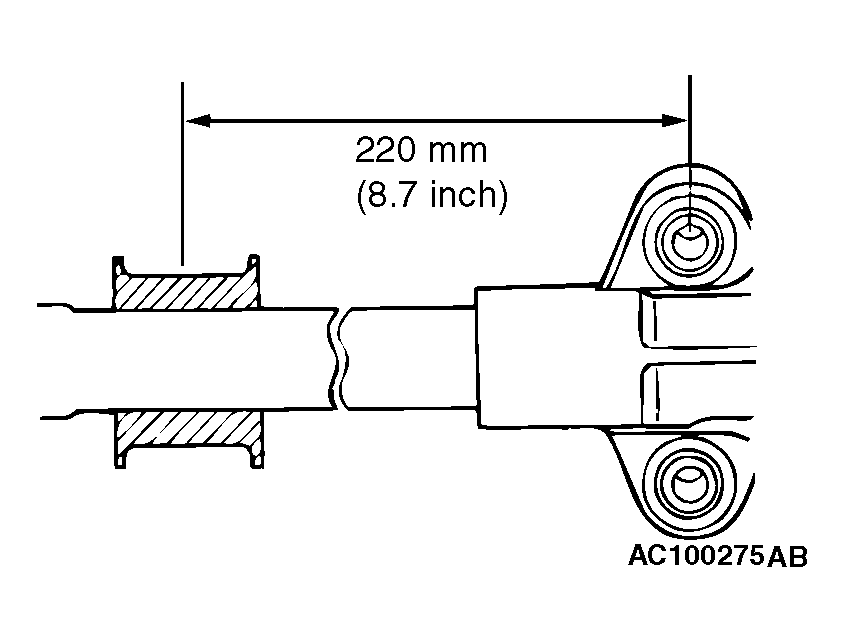

Fig 1: Installing Gear Mounting Rubber To Rack Housing
G04297635Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
