Lubrication And Sealing Points

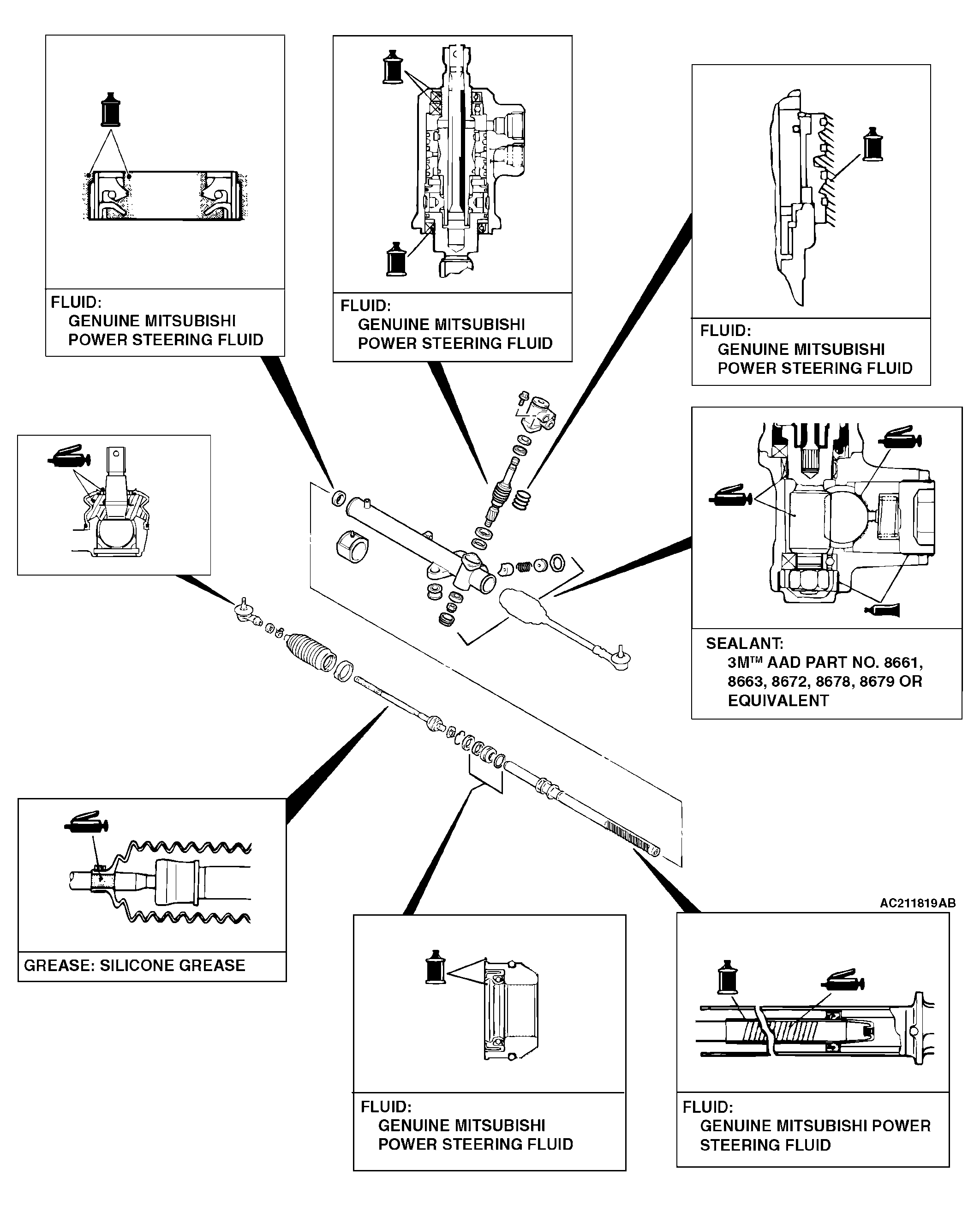

Fig 1: Identifying Lubrication And Sealing Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
