<< A >> Lower Arm Assembly Removal

Lift the transaxle with a transmission jack, and then withdraw the front mounting bolt on the left lower arm assembly.

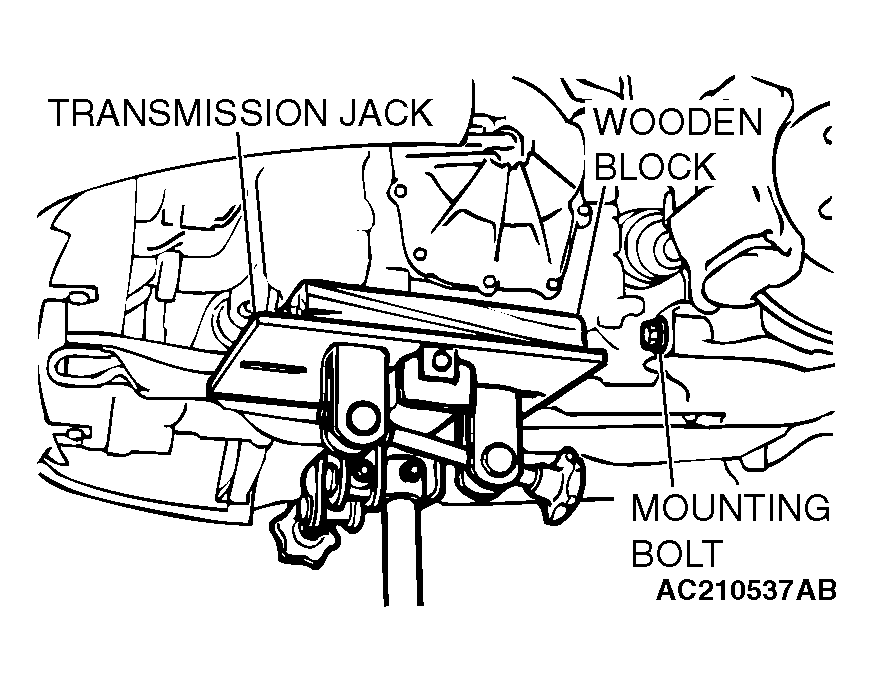

Fig 1: Lifting Transaxle With Transmission Jack
G04297603Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
