>> A << O-Ring Installation

SERVICE POINTS CHART

No.	ID x Width mm (in)
1	11.0 x 1.9 (0.43 x 0.07)
2	13.0 x 1.9 (0.51 x 0.07)

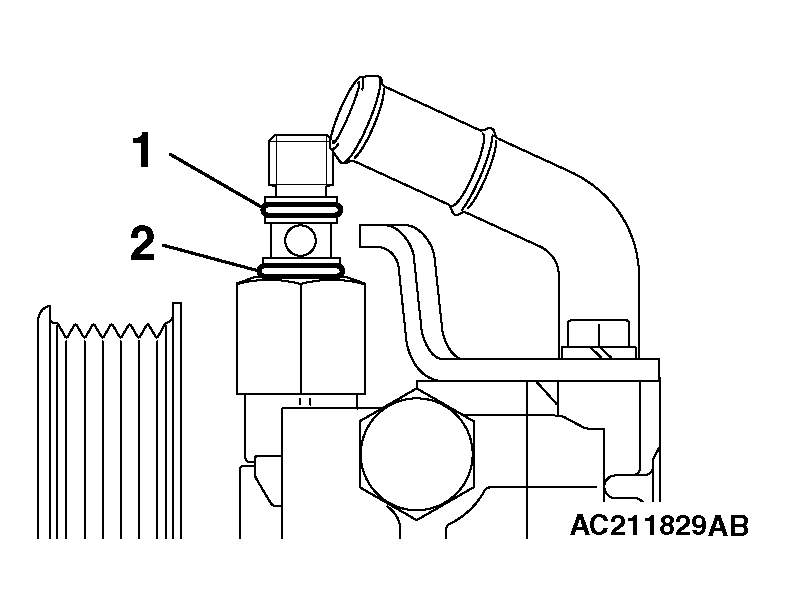

Fig 1: Installing O-Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
