<< A >> Special Bolt Removal

  1. Drill in the special bolt a hole deep enough for the tap to stand.
  2. Remove the special bolt with a left-hand tap.

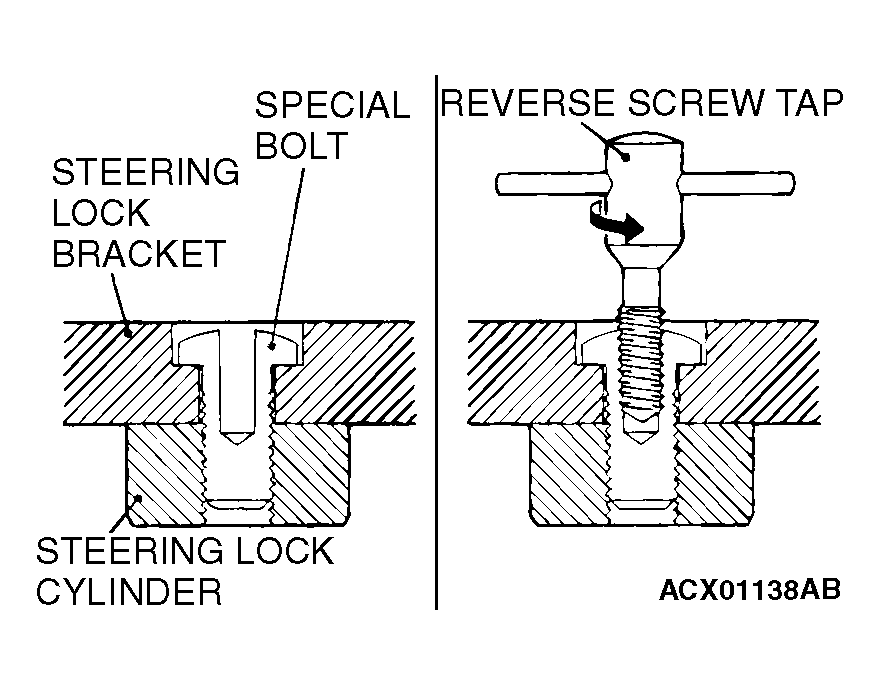

    Fig 1: Removing Special Bolt With Left-Hand Tap
    G04297600Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
