Disassembly And Assembly

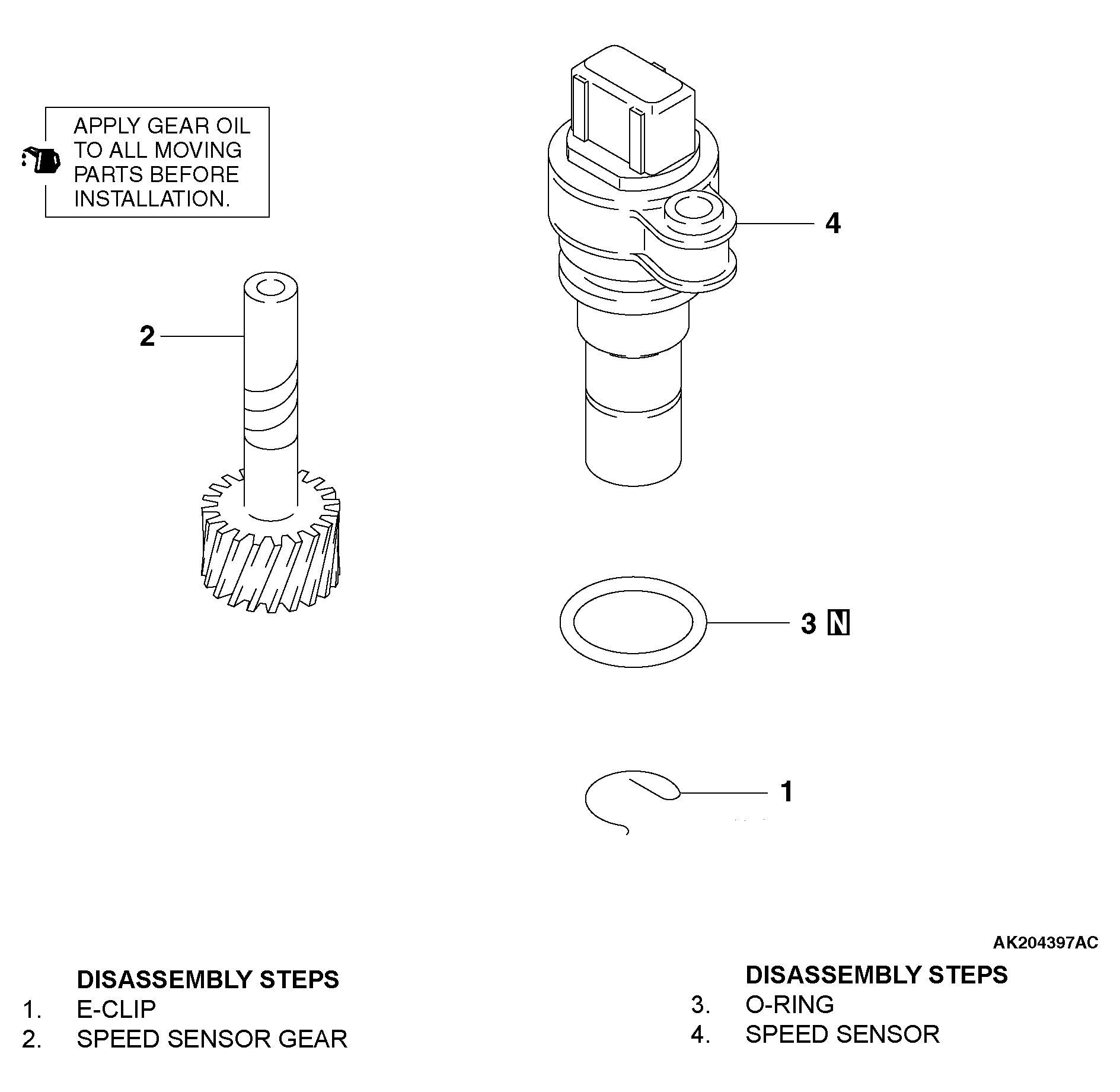

Fig 1: Disassembling\Assembling Vehicle Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
