Disassembly And Assembly: Notes

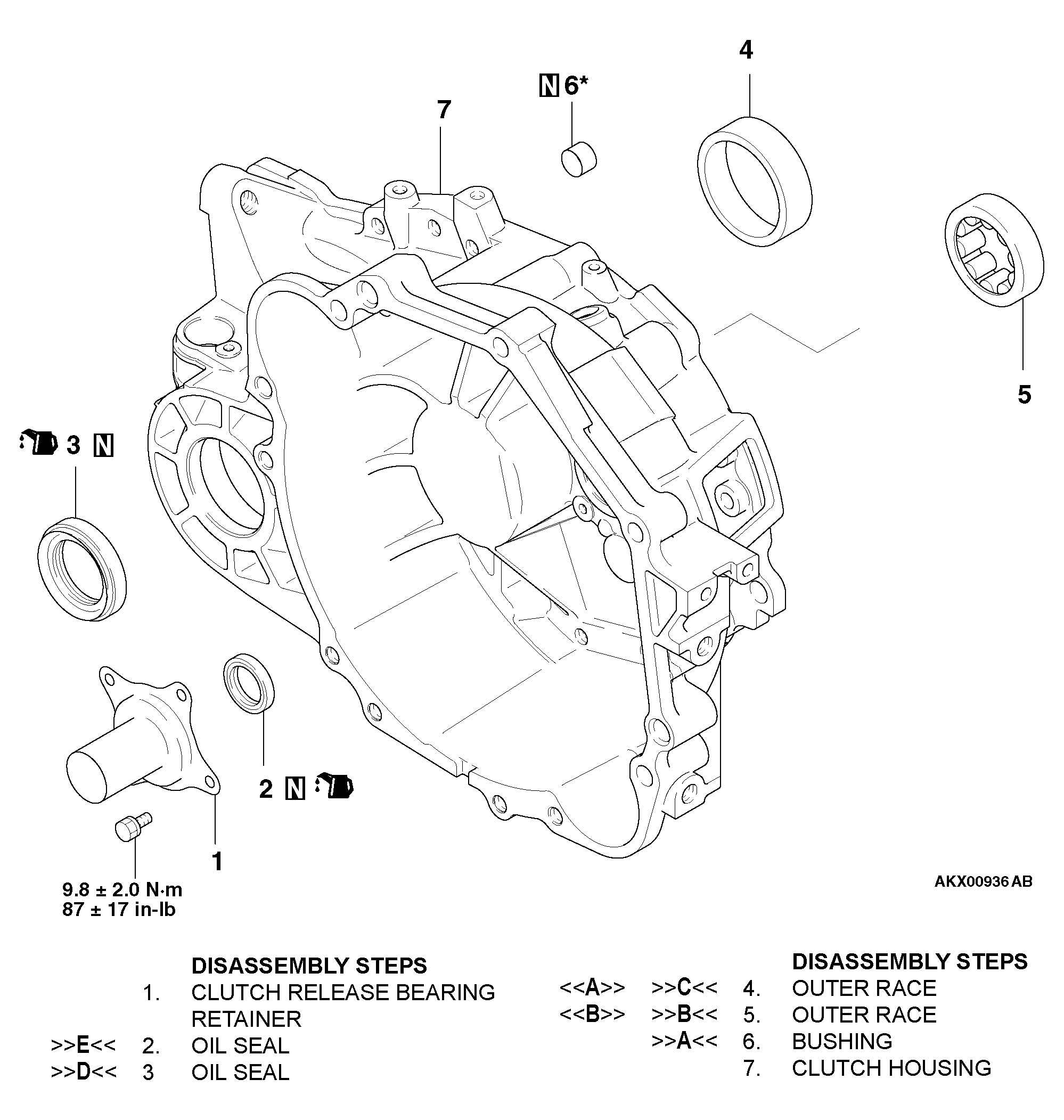

Fig 1: Disassembling/Assembling Of Clutch Housing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990926: Installer Adapter
• MB990934: Installer Adapter
• MB990935: Installer Adapter
• MB990938: Handle
• MD998325: Differential Oil Seal Installer
• MD998346: Bearing Outer Race Remover
• MD998772: Valve Spring Compressor
• MD999566: Claw
