>>E<< Lock Pin Installation

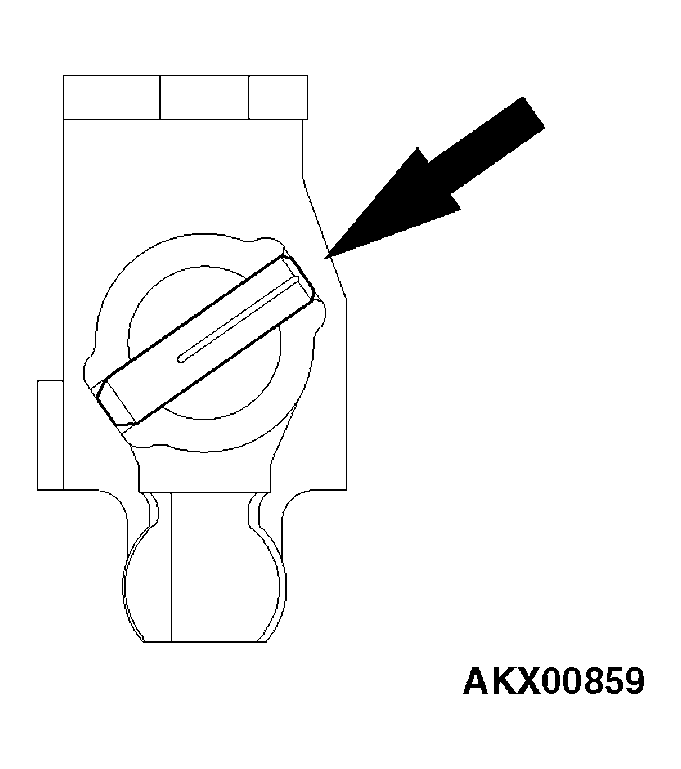

Drive the lock pin in from the direction shown in the illustration.

Fig 1: Installing Lock Pin
G04275891Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
