Synchronizer Ring

  1. Check the clutch gear teeth for damage and broken.
  2. Check internal surface for damage, wear and broken threads.

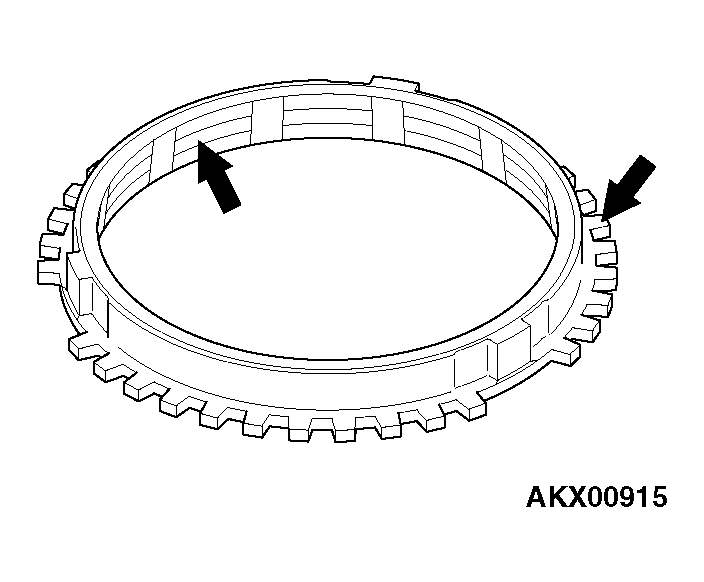

    Fig 1: Checking Clutch Gear Teeth
    G04275838Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Force the synchronizer ring toward the clutch gear and check clearance "A." If "A" is less than the limit, replace the synchronizer ring.

    Minimum limit: 0.5 mm (0.020 inch)

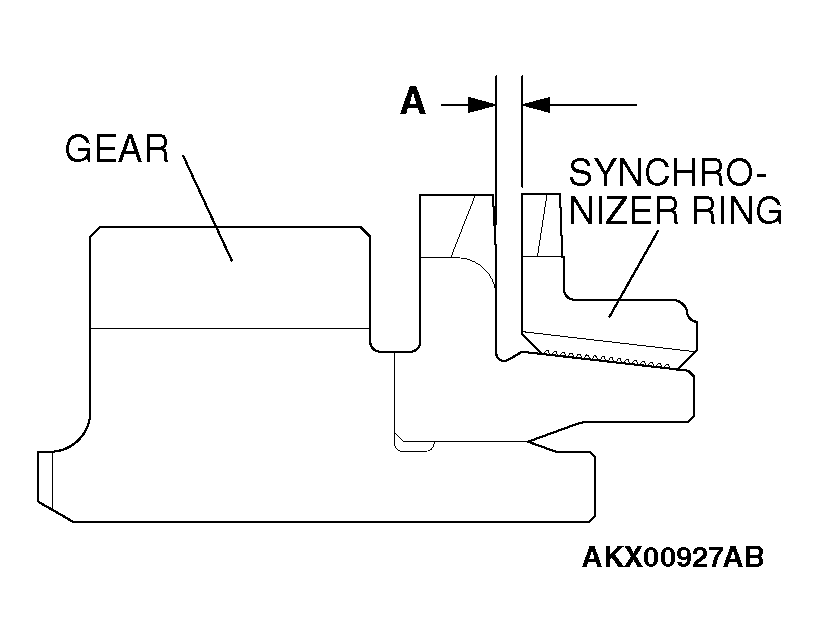

    Fig 2: Checking Clearance To Synchronizer Ring
    G04302390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
