Synchronizer Sleeve And Hub

  1. Combine the synchronizer sleeve and hub, and check that they slide smoothly.
  2. Check that the sleeve is free from damage at its inside splines ends.

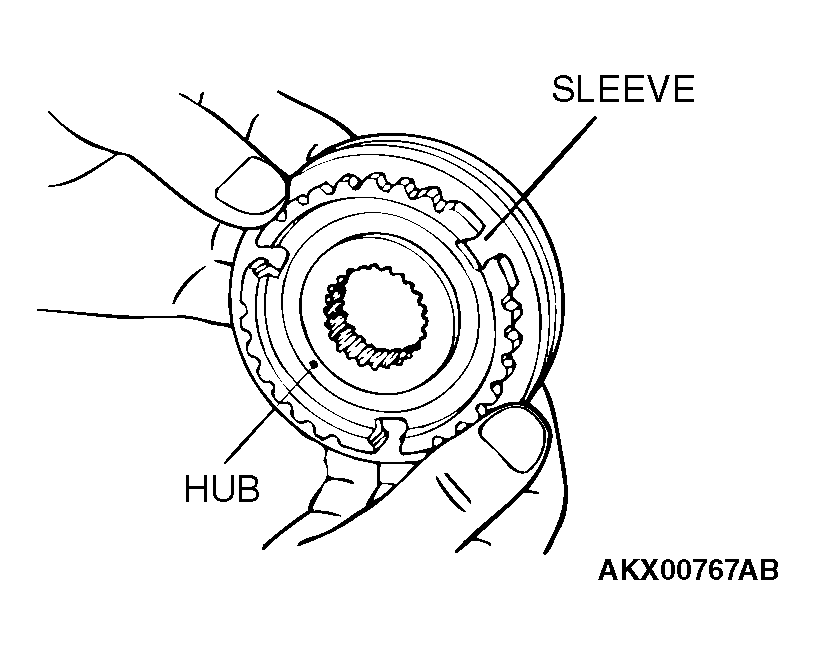

    Fig 1: Checking sleeve
    G04275840Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
