>>O<< Synchronizer Sleeve Installation

  1. Check that the synchronizer sleeve is in the correct direction for installation, and install it on the 1st-2nd speed synchronizer hub.

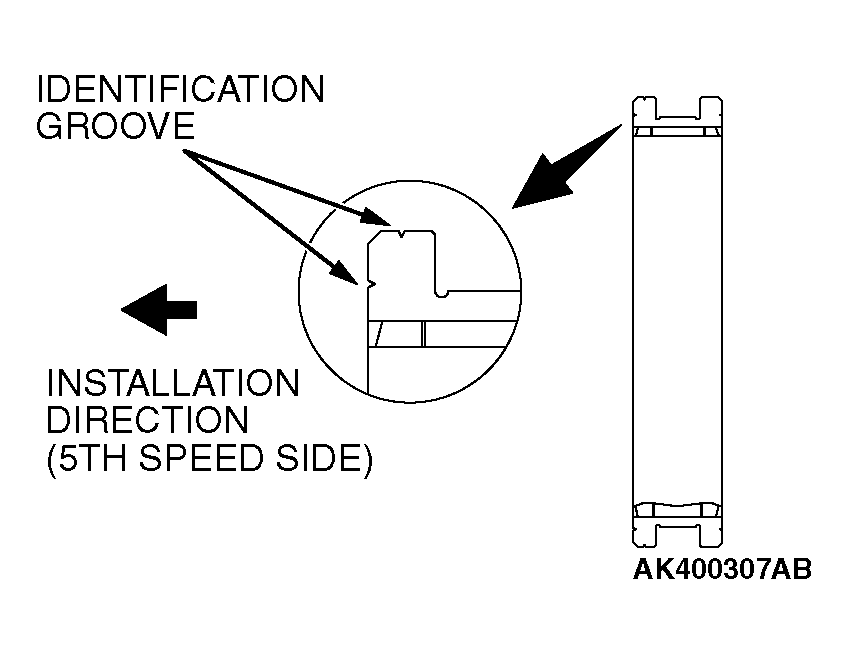

    Fig 1: Identifying Synchronizer Sleeve Installation Correct Direction
    G04275867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).
    Fig 2: Identifying Teeth With Raised Tips & Deep Grooves
    G04302381Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
