Synchronizer Sleeve And Hub: Notes

  1. Combine the synchronizer sleeve and hub, and check that they slide smoothly.
  2. Check that the sleeve is free from damage at its inside splines ends.

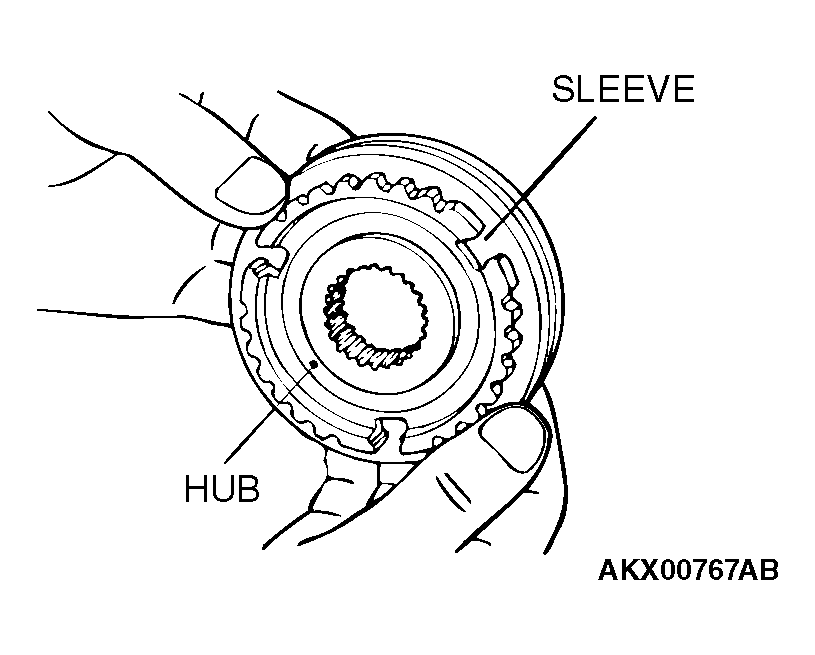

    Fig 1: Checking Sleeve At Its Inside Splines Ends
    G04275877Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
