>>A<< Dust Cover And Select Lever Bushing Installation

Make sure the dust cover and select lever bushing installation direction is correct, and the distinguished parts are correctly assembled as shown.

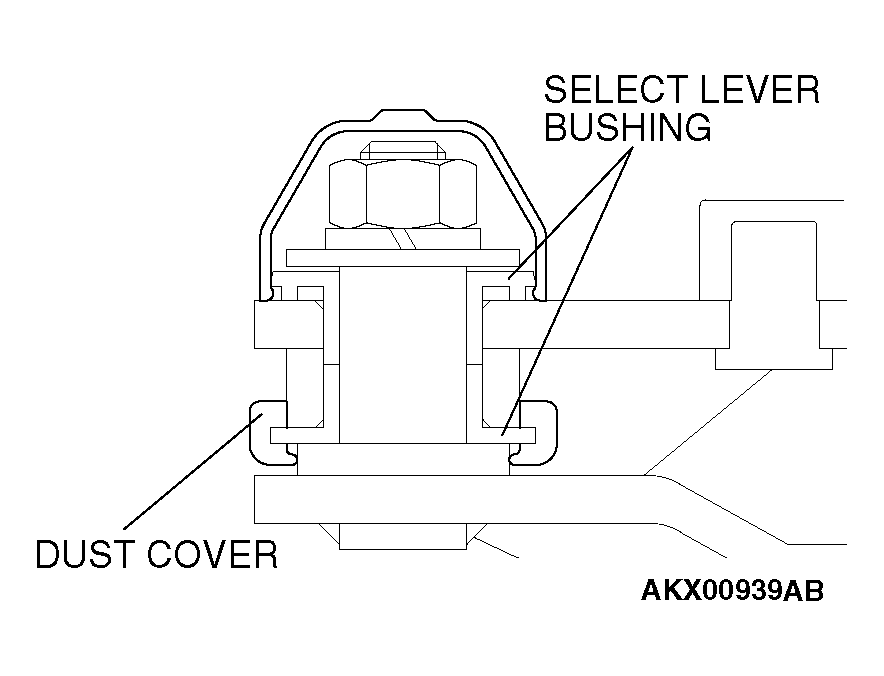

Fig 1: Installing Select Lever Bushing
G04275883Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
