>>H<< Control Housing Installation
CAUTION:
Squeeze sealant onto the case. Do not leave gaps or excess amounts, otherwise oil leaks are likely.

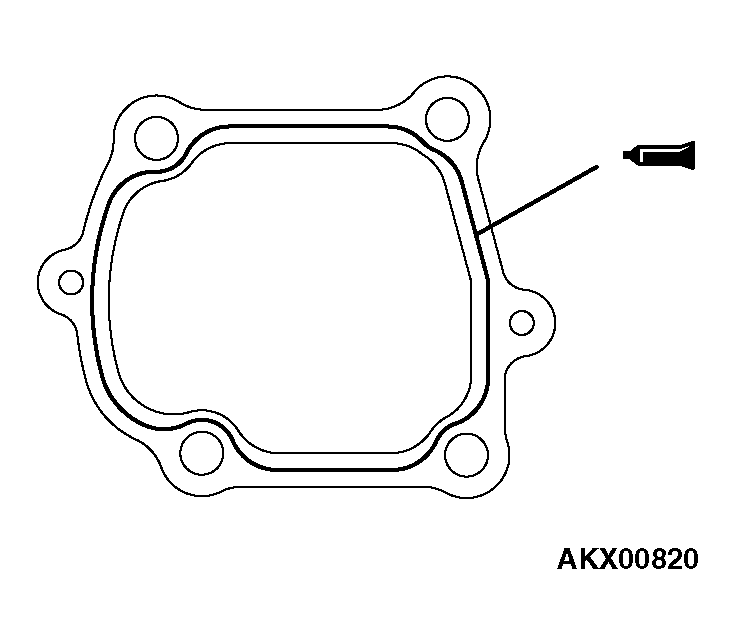

- Apply a 0.2 mm (0.08 inch) diameter bead of sealant (Mitsubishi Genuine Part number MD997740 or equivalent) as illustrated onto the control housing.NOTE: Be sure to install the housing to the case quickly while the sealant is still wet (within 15 minutes).
- Install the control housing to the transaxle case and tighten the bolts to specified torque.
Tightening torque: 19 +/- 3 N.m (14 +/- 2 ft-lb)
NOTE: After installation, keep the sealed area away from the oil for approximately one hour.
