Backup Light Switch

Check for continuity between terminals.

SWITCH CONDITION CONTINUITY CHART

SWITCH CONDITION	CONTINUITY
Pressed	Open
Released	Conductive

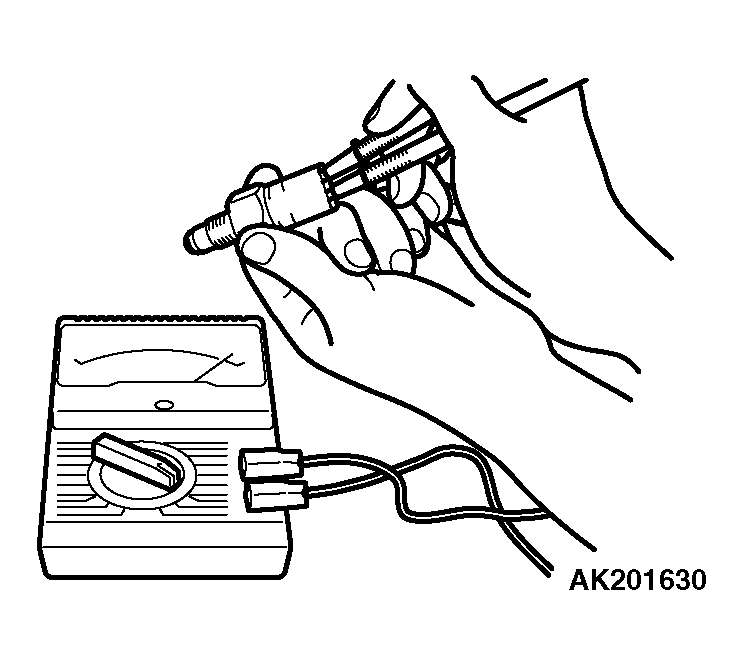

Fig 1: Checking Continuity Between Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
