Cruise Control Module: Testing and Inspection

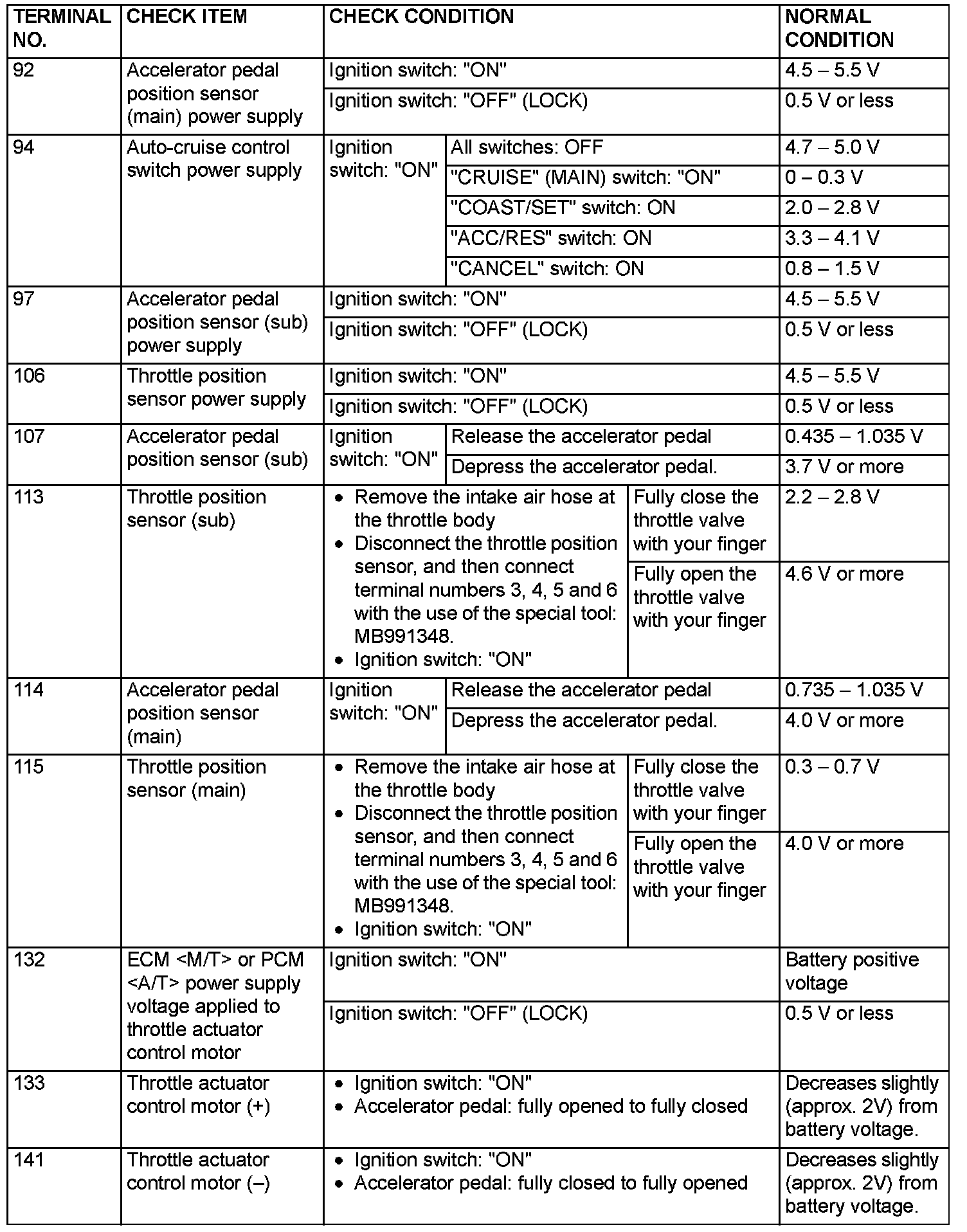

ECM<M/T> Or PCM<A/T> Terminal Voltage Reference Chart Part 1:

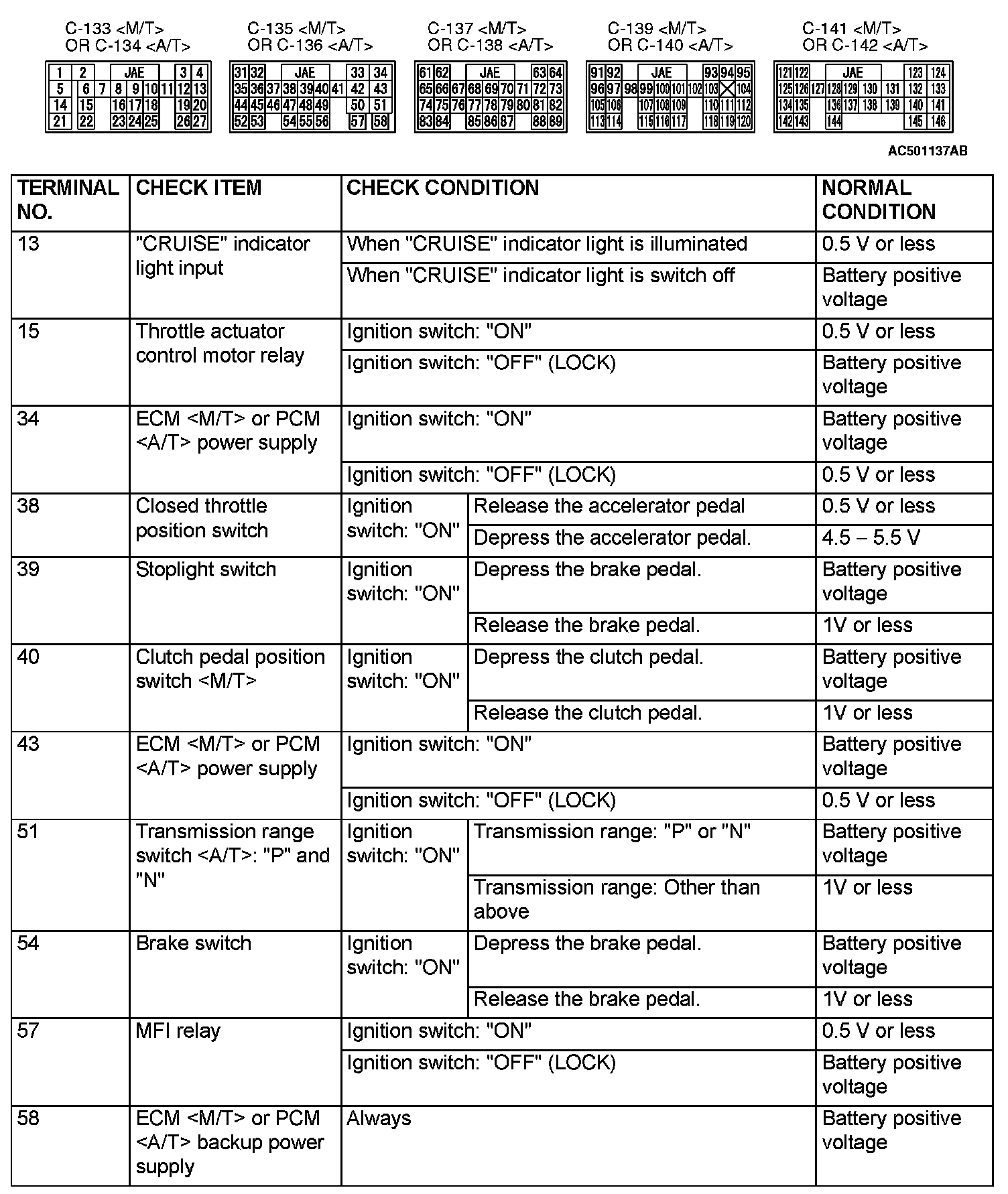

ECM<M/T> Or PCM<A/T> Terminal Voltage Reference Chart Part 2:
