Auto-Cruise Control Switch Check

AUTO-CRUISE CONTROL SWITCH CHECK








1. Remove the auto-cruise control switch.

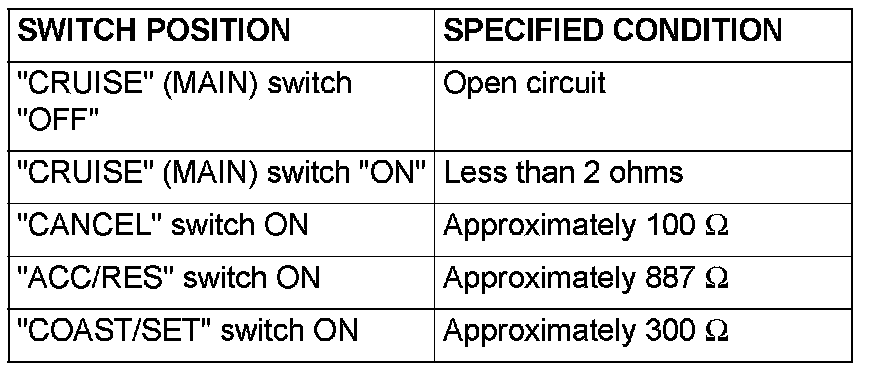

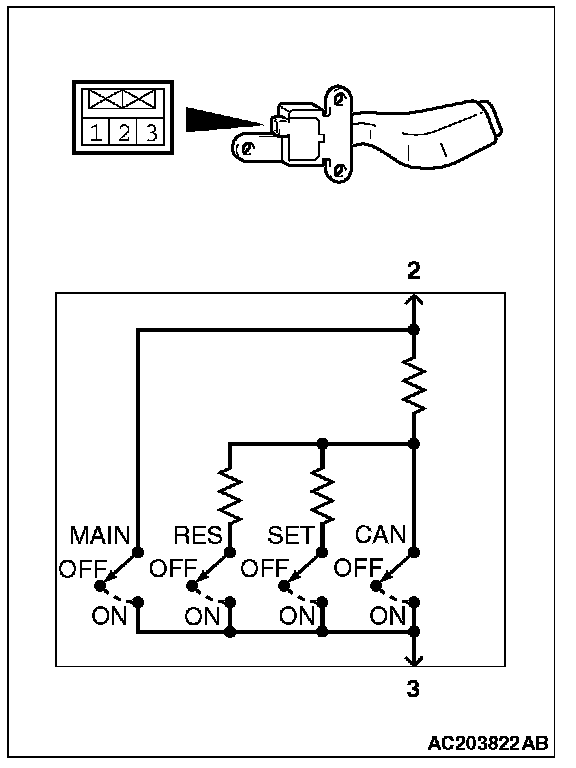

2. Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table, the resistance values are correct.
