Removal and Installation
HEATER CONTROL ASSEMBLY AND A/C SWITCHHeater Control Assembly And A/C Switch - Removal And Installation:

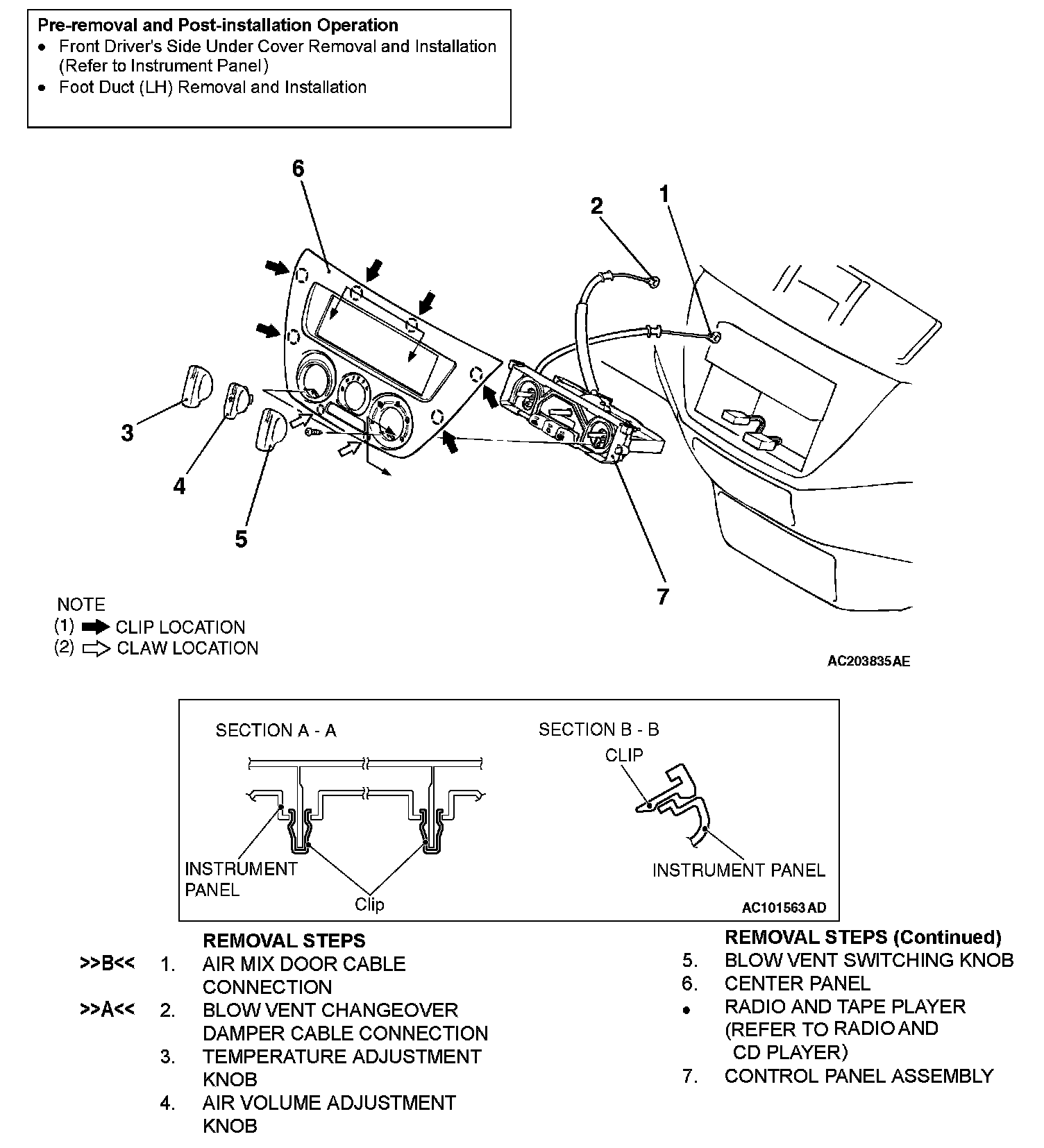

REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINTS
>>A<< BLOW VENT CHANGEOVER DAMPER CABLE
1. Set the heater control assembly's blow vent changeover knob to the DEF position.
2. Set the heater unit's blow vent changeover damper lever to the DEF position (turn the damper relay to the left until it stops) and install the cable.
3. Set the mold locator to the heater unit case and secure with a clip.
>>B<< AIR MIX DOOR CABLE CONNECTION
1. Turn the heater control assembly's temperature adjustment knob all the way to the HOT side.
2. Set the heater unit s air mix door lever to the MAX HOT position (turn the damper lever as the left illustration) and attach the cable.
3. Set the mold locator to the heater unit case and secure with a clip.
