Accelerator Pedal Position Sensor: Testing and Inspection

ACCELERATOR PEDAL POSITION SENSOR CHECK




1. . Disconnect the accelerator pedal position sensor connector.

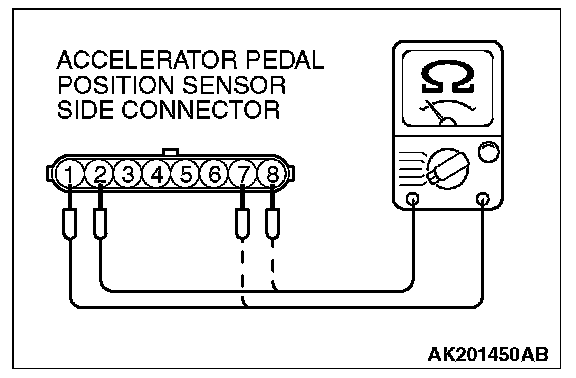

2. Measure the resistance between accelerator pedal position sensor connector terminal No. 1 [accelerator pedal position sensor (main) earth] and terminal No. 2 [accelerator pedal position sensor (main) power supply], and between terminal No.7 [accelerator pedal position sensor (sub) earth] and terminal No. 8 [accelerator pedal position sensor (sub) power supply].
Standard value: 3.5 - 6.5 kohm

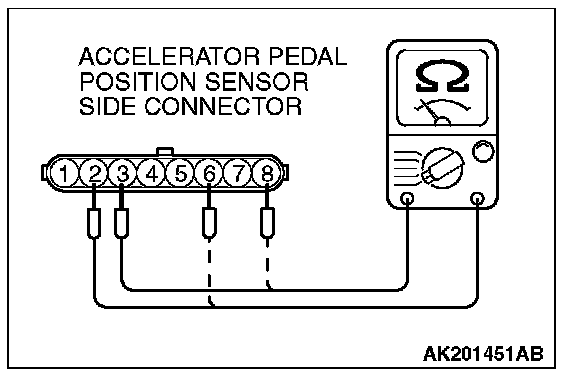

3. Measure the resistance between accelerator pedal position sensor connector terminal No. 2 [accelerator pedal position sensor (main) power supply] and terminal No. 3 [accelerator pedal position sensor (main) output]; and between terminal No.8 [accelerator pedal position sensor (sub) power supply] and terminal No. 6 [accelerator pedal position sensor (sub) output].

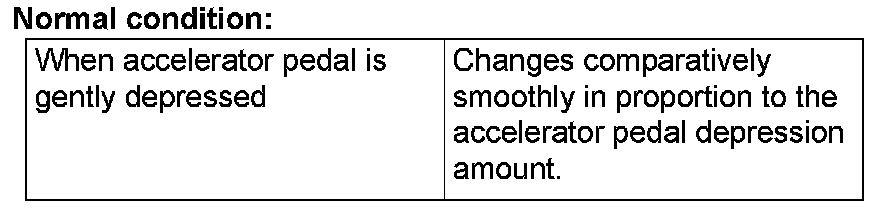

4. If the measured values are outside the standard value range, or if the resistance does not change smoothly, replace the accelerator pedal position sensor.

NOTE: After replacement, adjust the accelerator pedal position switch and accelerator pedal position sensor.
