Press The Transmitter Unlock Switch Twice

When the transmitter unlock switch is pressed twice, the ETACS-ECU energizes its door unlock relay to operate the driver's door lock actuator and the other door lock actuators for 0.5 second each in succession. Then, the doors will be unlocked.

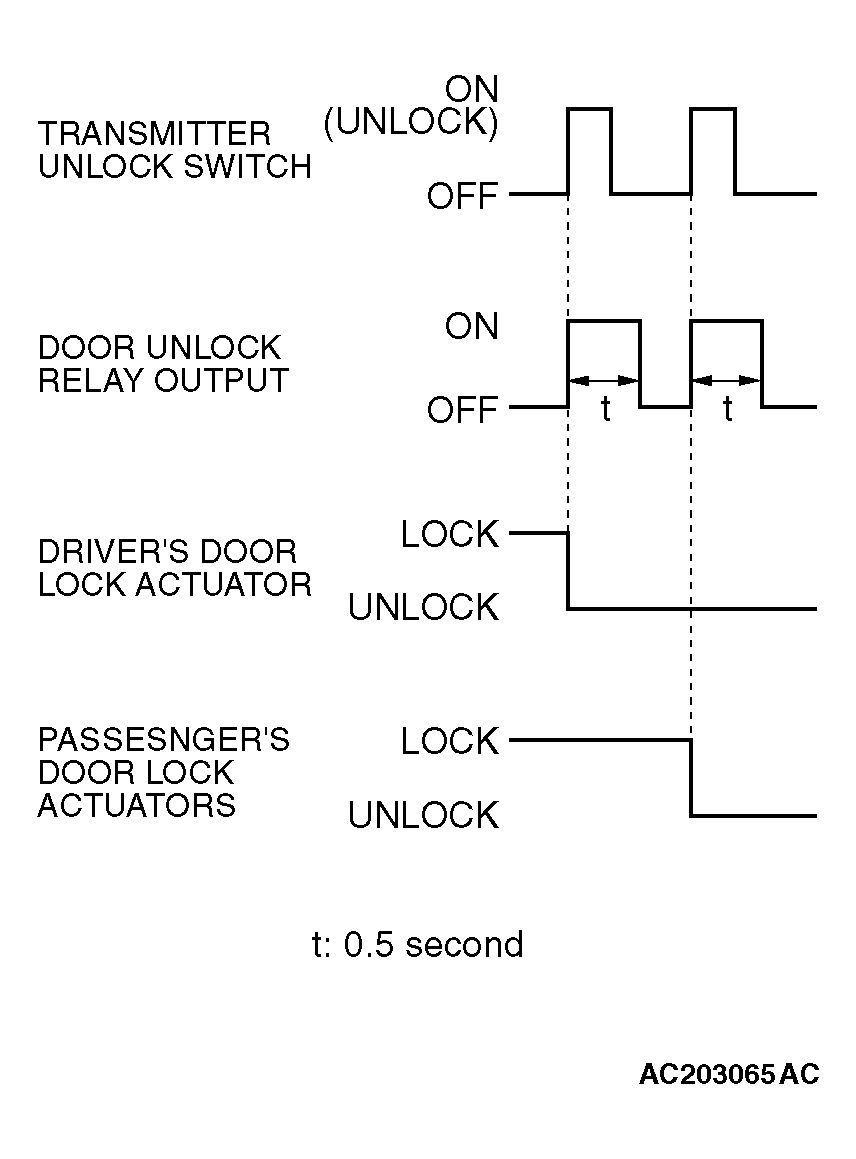

Fig 1: Pressing Transmitter Unlock Switch Twice To Unlock Other Doors
G04269212Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
