INSPECTION PROCEDURE D-2: Power Window: The power window timer does not work normally.: Notes

NOTE: This troubleshooting procedure requires the use of scan tool MB991958 and SWS monitor kit MB991862. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR  ."

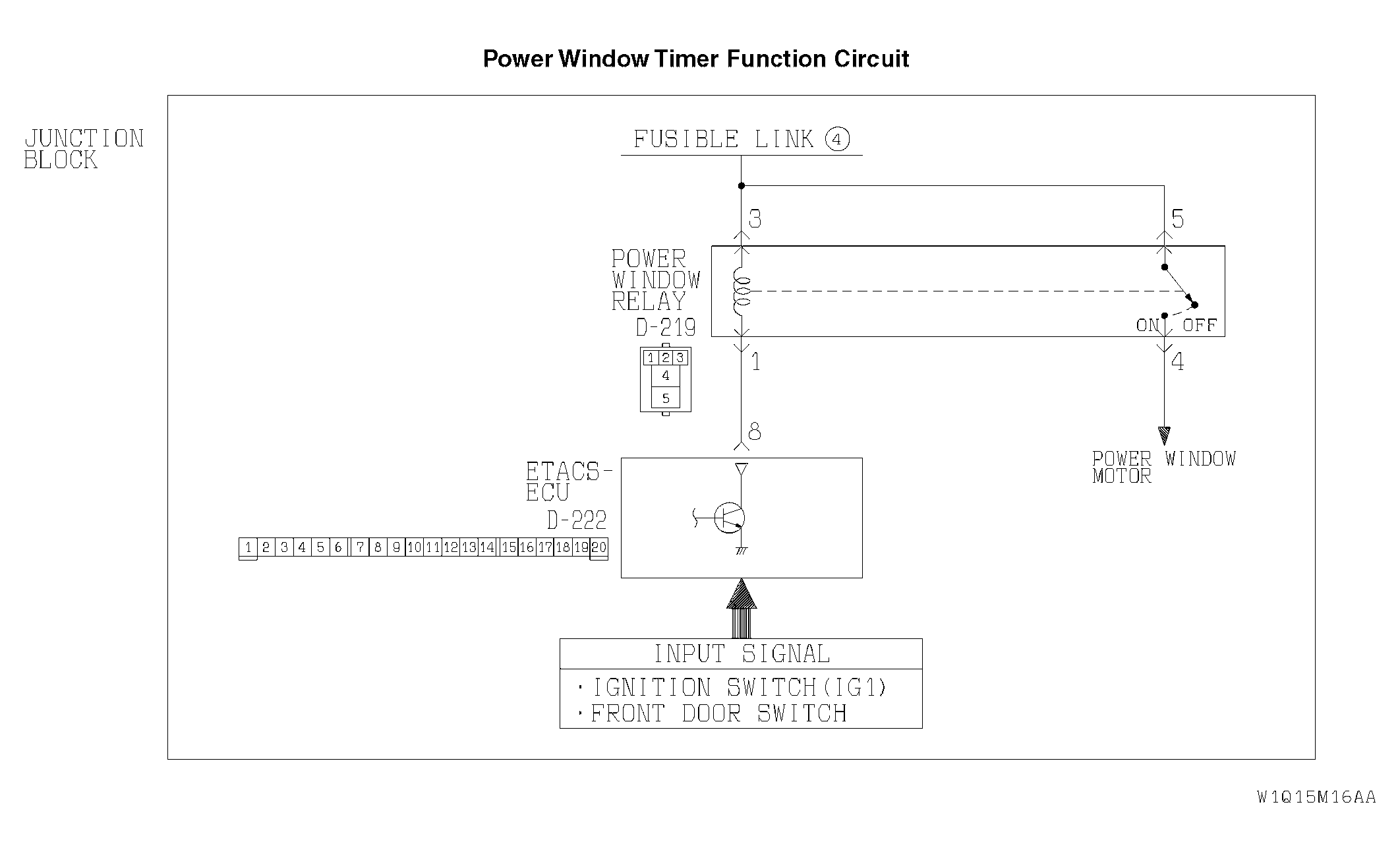

Fig 1: Power Window Timer Function Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
