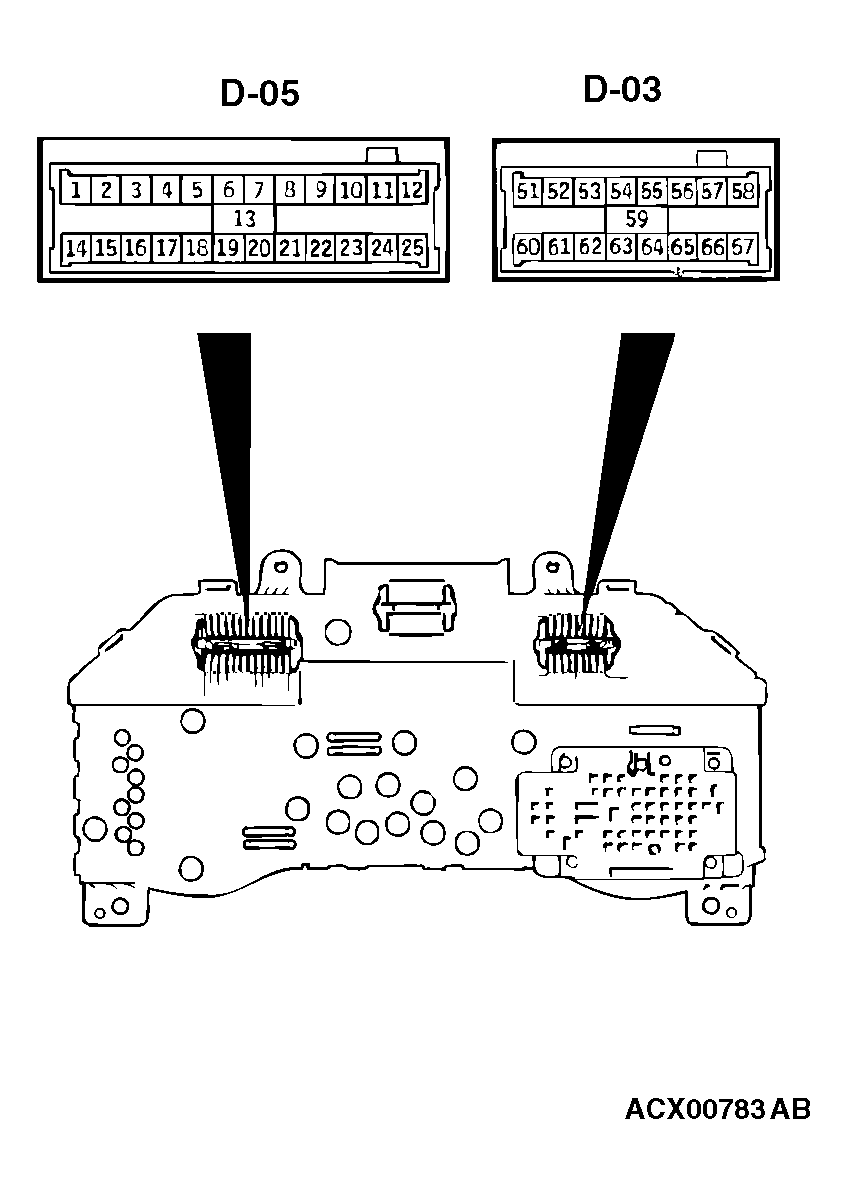

Combination Meter Internal Resistance Check
Measure the resistance between terminals using an ohmmeter.
TERMINAL NO. TO MEASURE RESISTANCE CHART
| TERMINAL NO. TO MEASURE RESISTANCE | TERMINAL NAME | STANDARD VALUE |
|---|---|---|
| 25 - 67 | Battery power supply and ground | 1 MΩ or more |
| 11 - 67 | Battery power supply and ground | 1 MΩ or more |
| 25 - 62 | IG power supply and ground | 1 MΩ or more |
| 11 - 62 | IG power supply and ground | 1 MΩ or more |
| 63 - 67 | Battery power supply and fuel gauge | 1 MΩ or more |
| 62 - 63 | IG power supply and fuel gauge | 1 MΩ or more |
| 25 - 63 | Fuel gauge and ground | 180 Ω |
| 11 - 63 | Fuel gauge and ground | 180 Ω |
| 64 - 67 | Battery power supply and water temperature gauge | 1 MΩ or more |
| 62 - 64 | IG power supply and water temperature gauge | 1 MΩ or more |
| 25 - 64 | Water temperature gauge and ground | 210 Ω |
| 11 - 64 | Water temperature gauge and ground | 210 Ω |
