Fuel Level Sensor Resistance

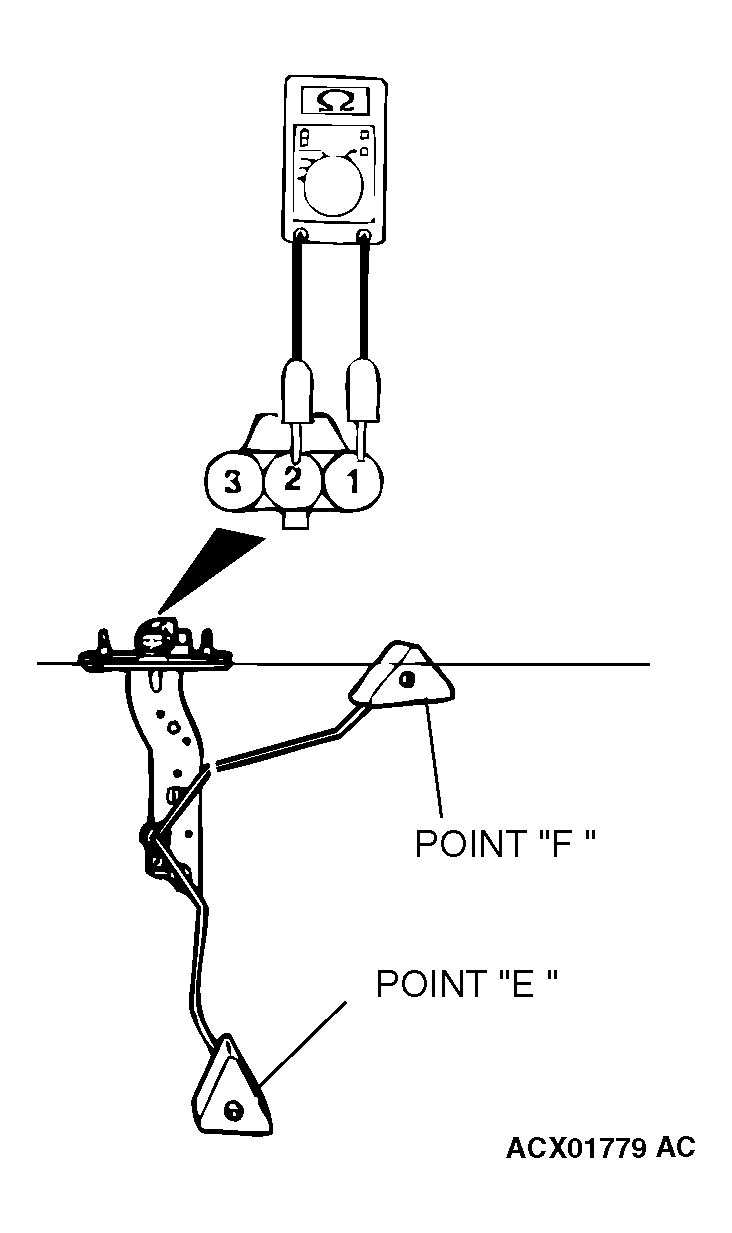

- Check that resistance value between the fuel gauge terminal and ground terminal is at the standard value when the fuel level sensor float is between point
Standard value:
- Point "F": 3 - 10.1 Ω
- Point "E": 90 - 110 Ω
- Check that resistance value changes smoothly when the float moves slowly between point
- If all checks are correct, go to fuel level sensor float height check. If any check is not correct, replace the fuel level sensor.
