INSPECTION PROCEDURE 1: When Power Switch is Turned "ON," no Power is Available.: Notes

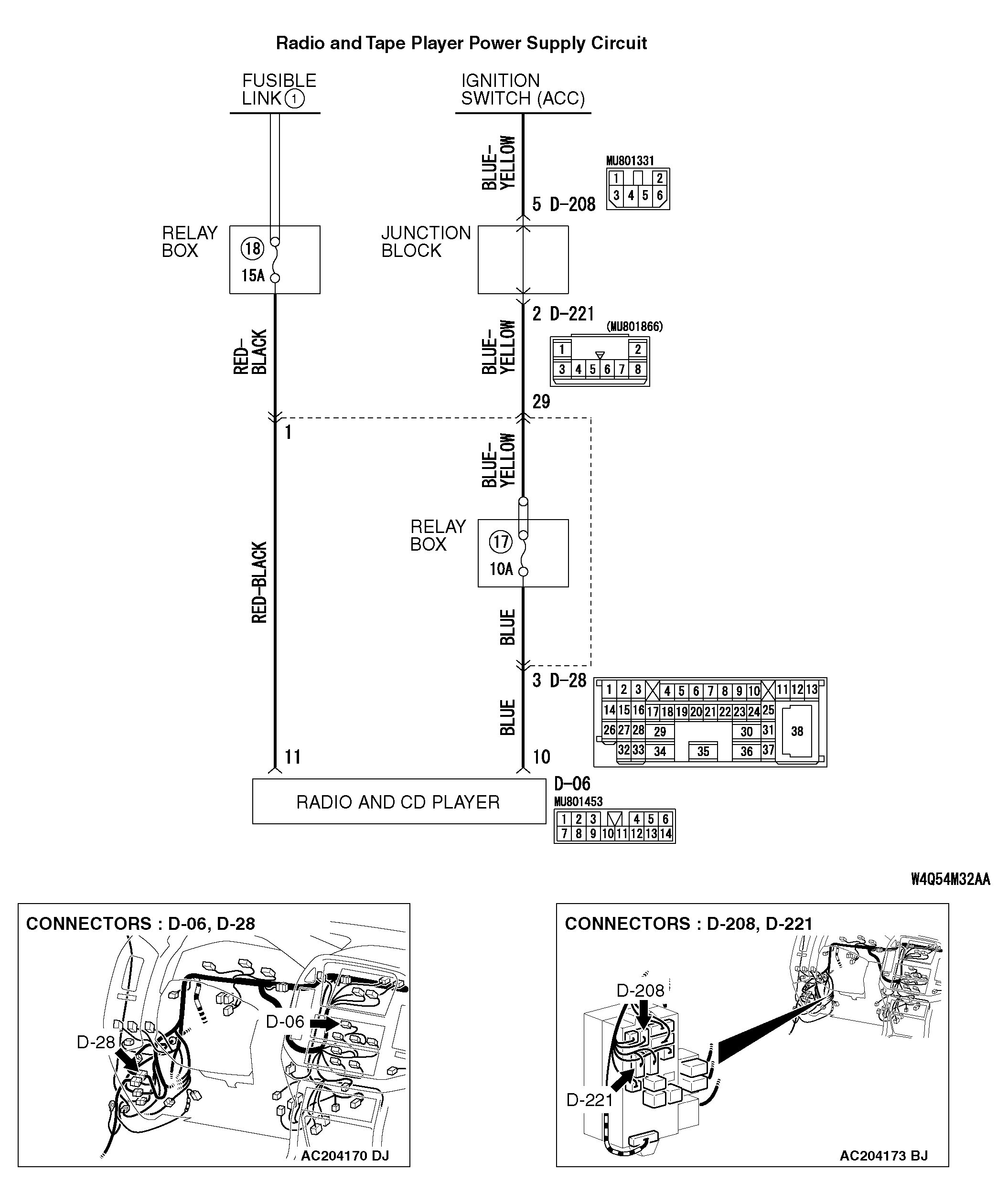

Fig 1: Radio And Tape Player Power Supply - Circuit Diagram
G04268540Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
