DTC 11, 12, 13, 14: ABS Sensor (Open Circuit or Short Circuit): Notes

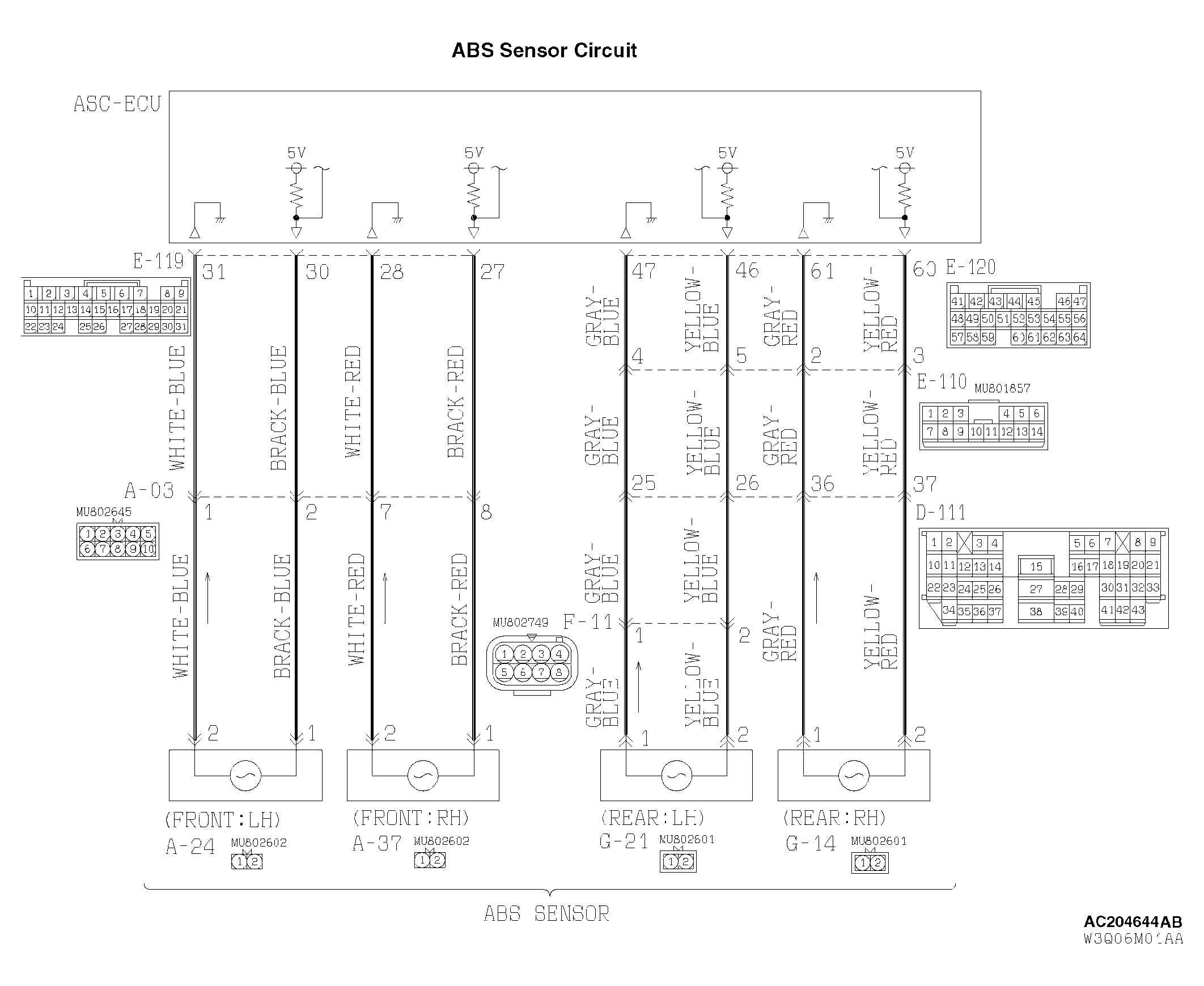

Fig 1: ABS Sensor Circuit Diagram (1 Of 2)
G04267351Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: ABS Sensor Circuit Diagram (2 Of 2)
G04267352Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
