<< A >> Control Panel Removal

When disconnecting the FFC, always pull the cable by gripping the connector, not the cable.

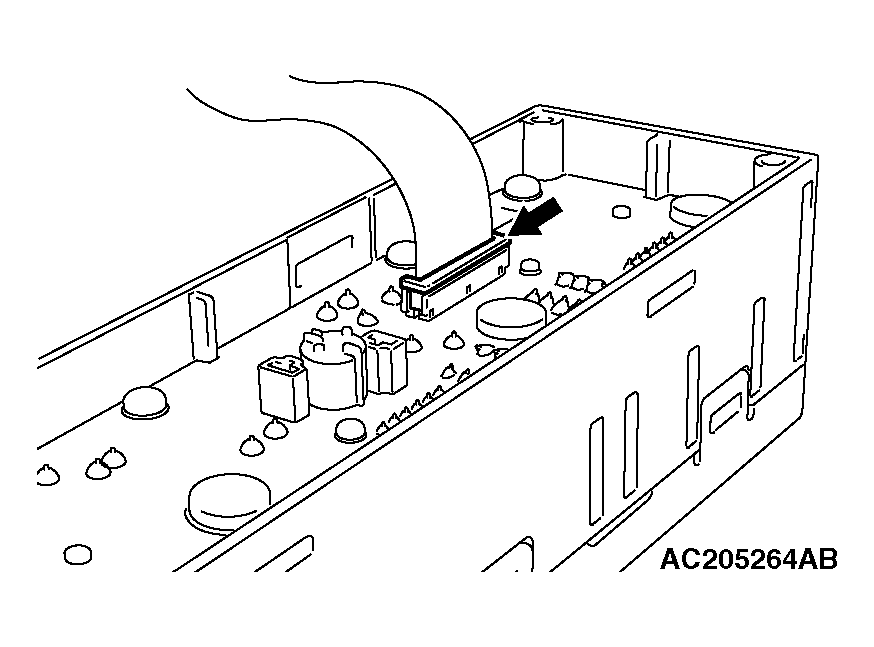

Fig 1: Identifying Flexible Flat Cable
G04270661
