INSPECTION PROCEDURE 2: Air Conditioning does not Operate.: Notes

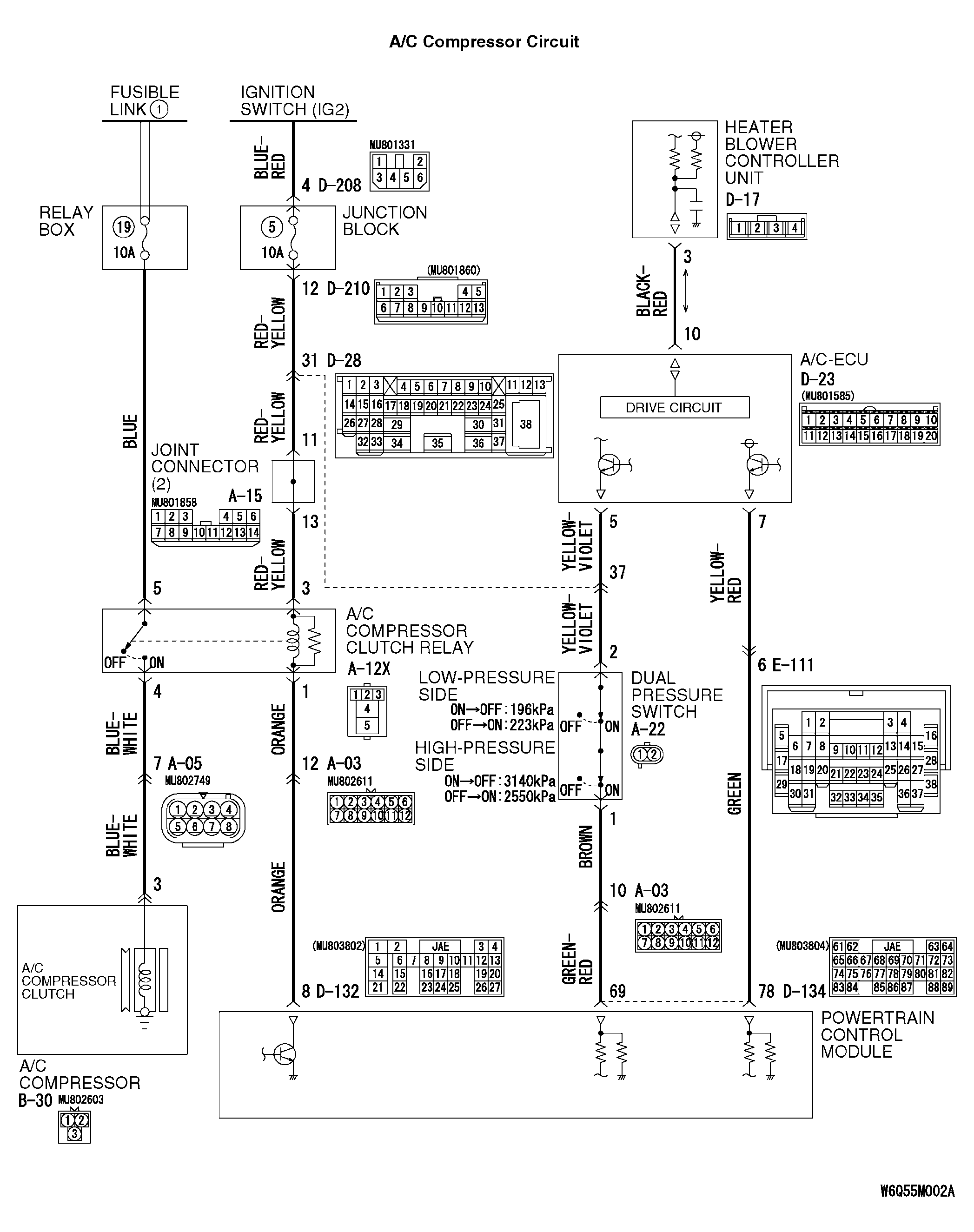

Fig 1: A/C Compressor Circuit Diagram (1 Of 2)
G04270418

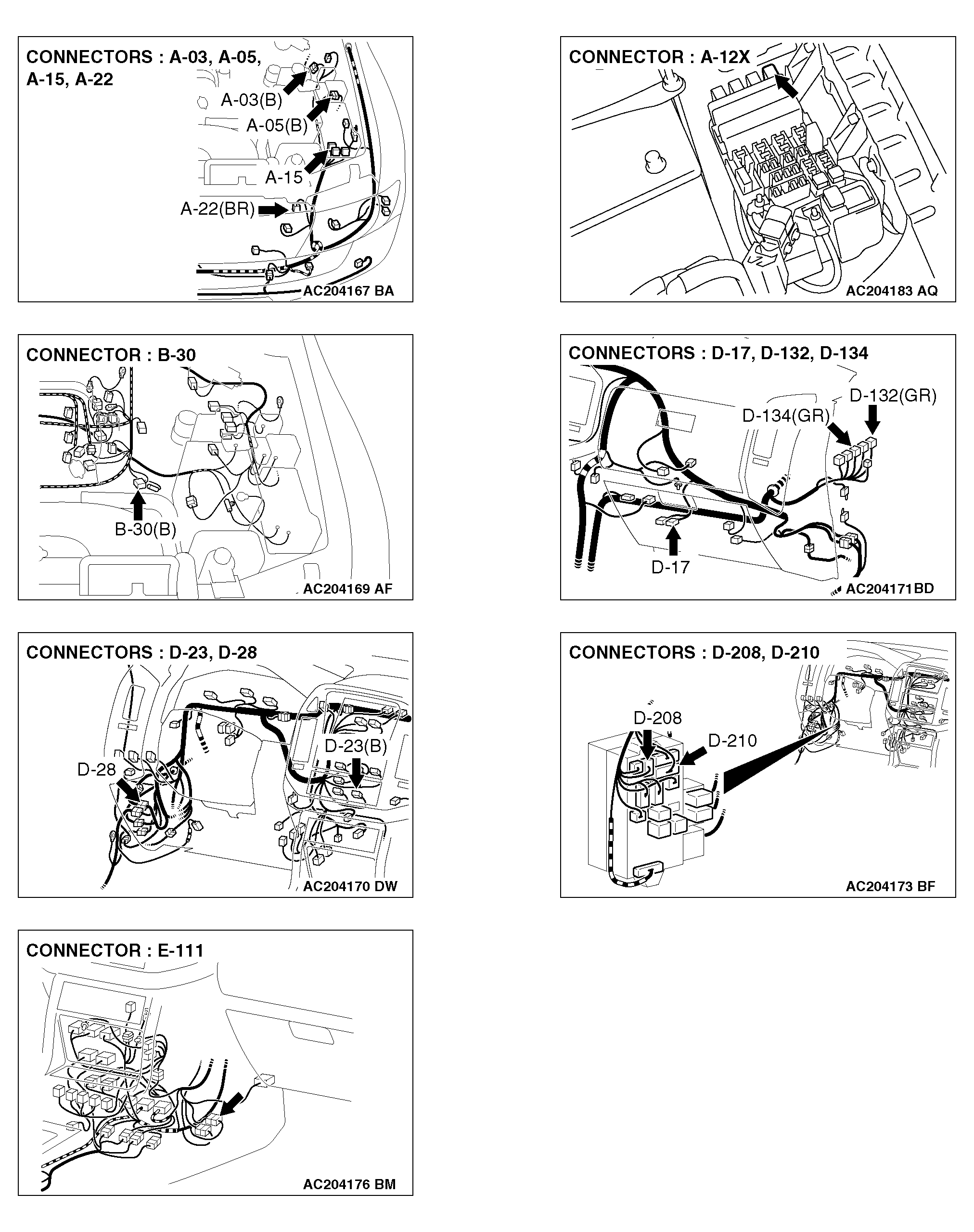

Fig 2: A/C Compressor Circuit Diagram (2 Of 2)
G04270419
