INSPECTION PROCEDURE 7: Outside/Inside Air Changeover is not Possible.: Notes

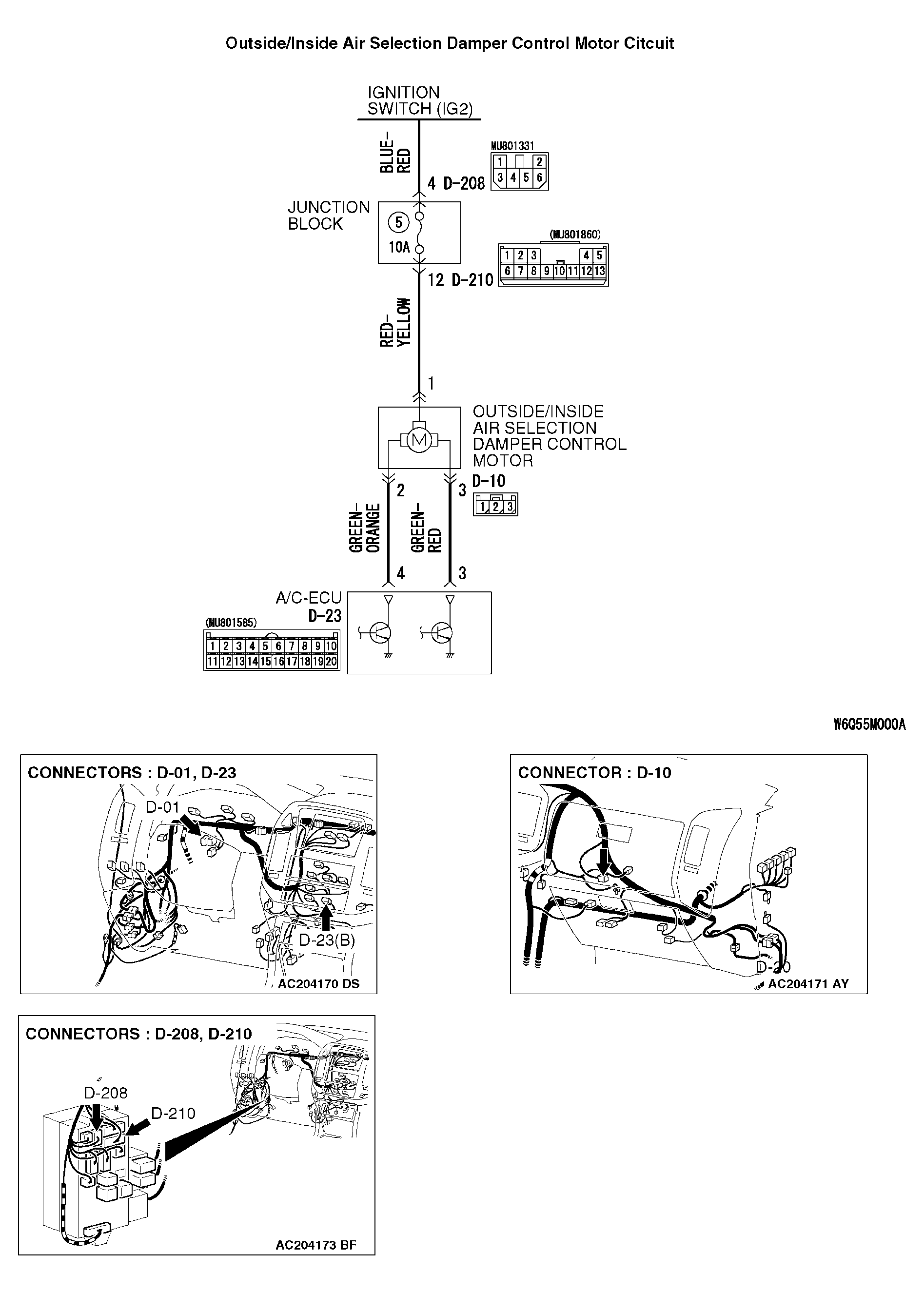

Fig 1: Outside/Inside Air Selection Damper Control Motor Circuit Diagram
G04270541
