INSPECTION PROCEDURE 8: Rear Defogger does not Operate.: Notes

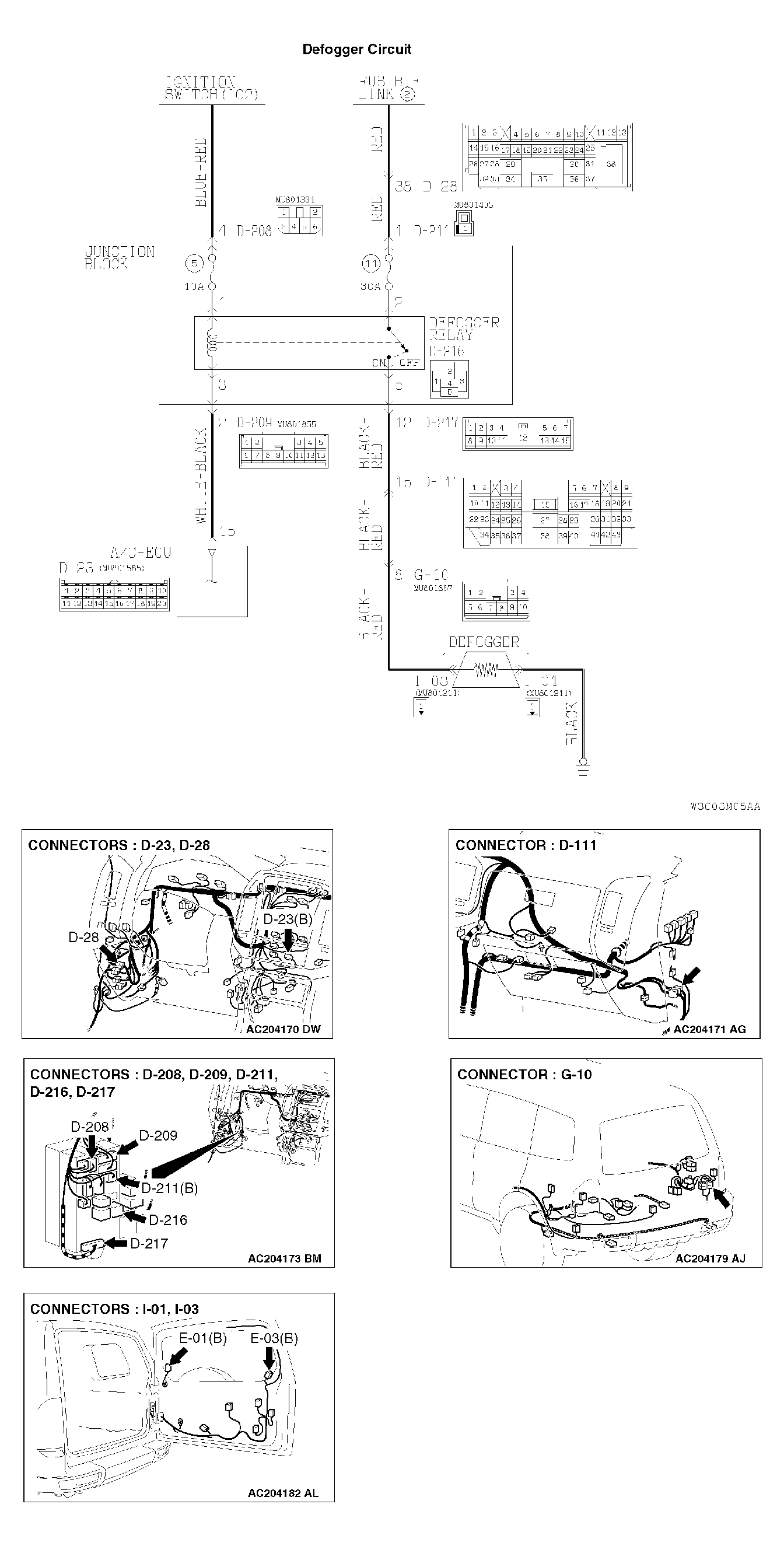

Fig 1: Defogger Circuit Diagram

G04270555
