INSPECTION PROCEDURE 9: Condenser Fan does not Operate.: Notes

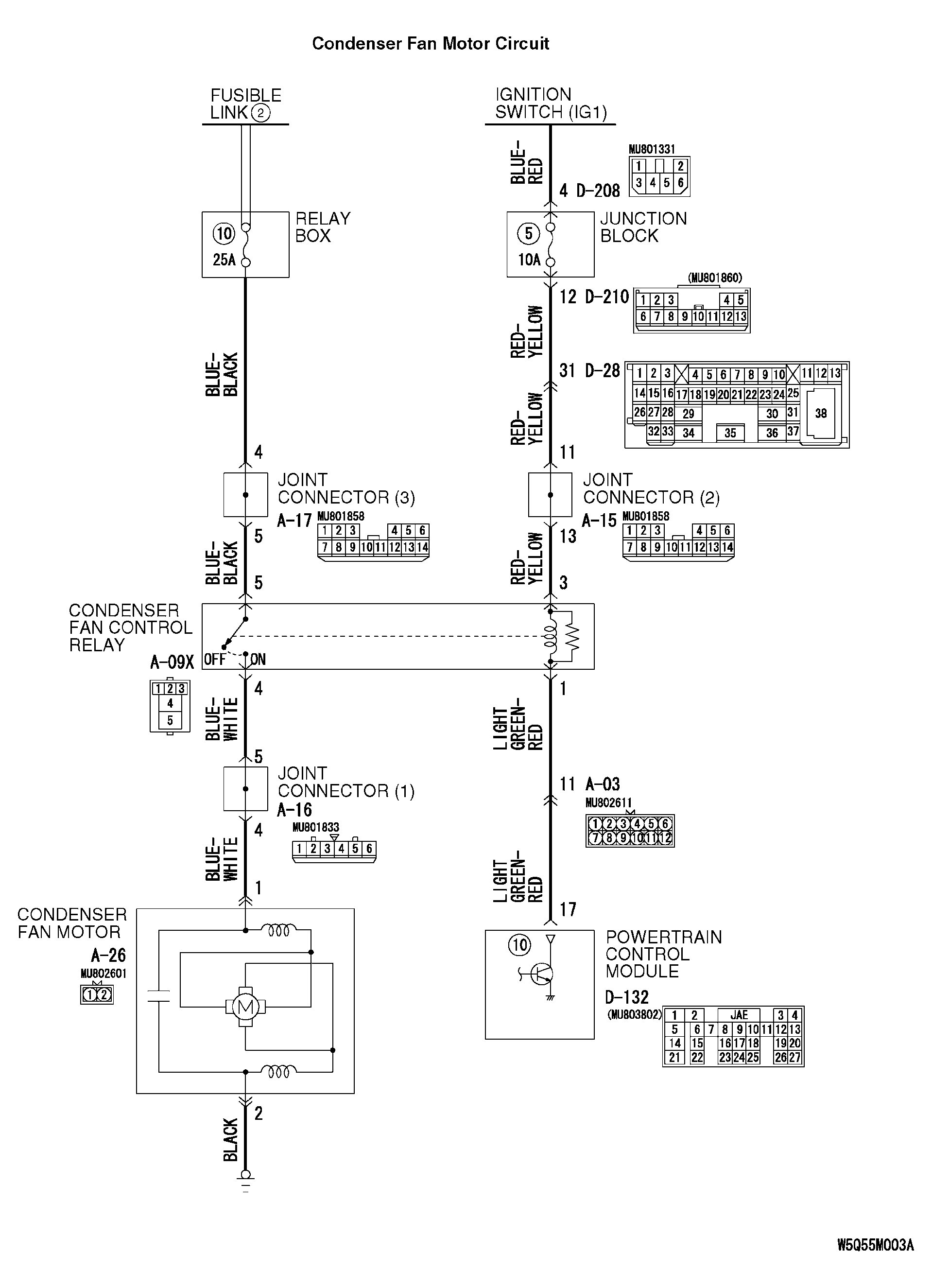

Fig 1: Condenser Fan Motor Circuit Diagrams (1 Of 2)
G04270585

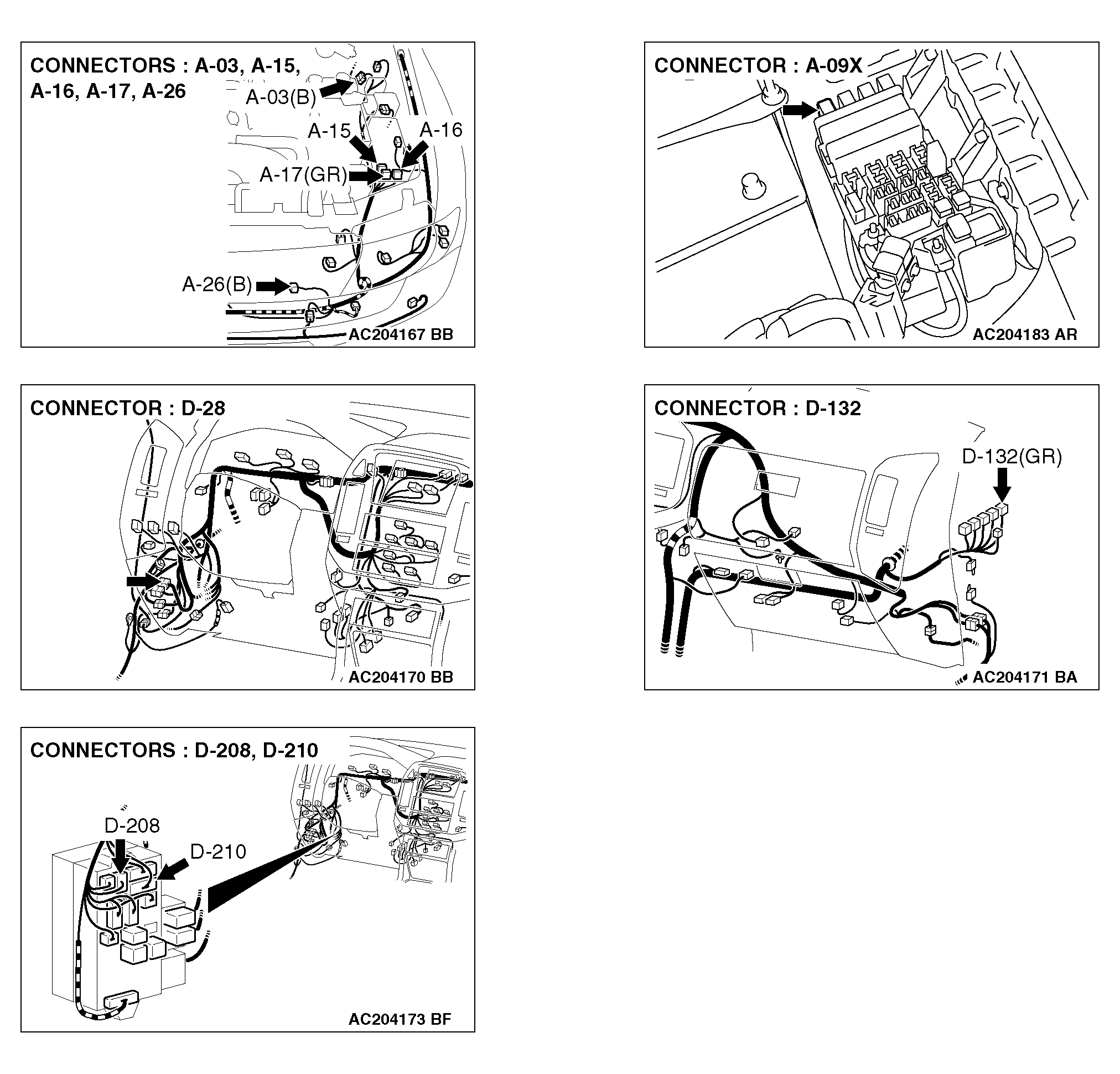

Fig 2: Condenser Fan Motor Circuit Diagrams (2 Of 2)
G04270586
