<< F >> Rack Stopper/Rack Bushing/Oil Seal/O-Ring/Rack Assembly Removal

CAUTION: Do not damage the press-in portion of the oil seal on the rack bush.
  1. Pull out the rack assembly carefully and take out the rack stopper, rack bush, oil seal and O-ring at the same time.

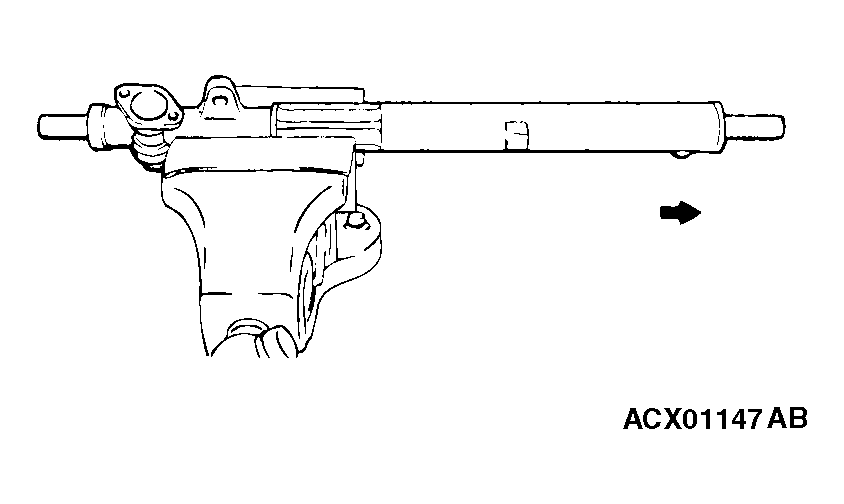

    Fig 1: Identifying Rack Assembly Removal Direction
    G04267633Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Bend a portion of the oil seal to remove it from the rack bushing.

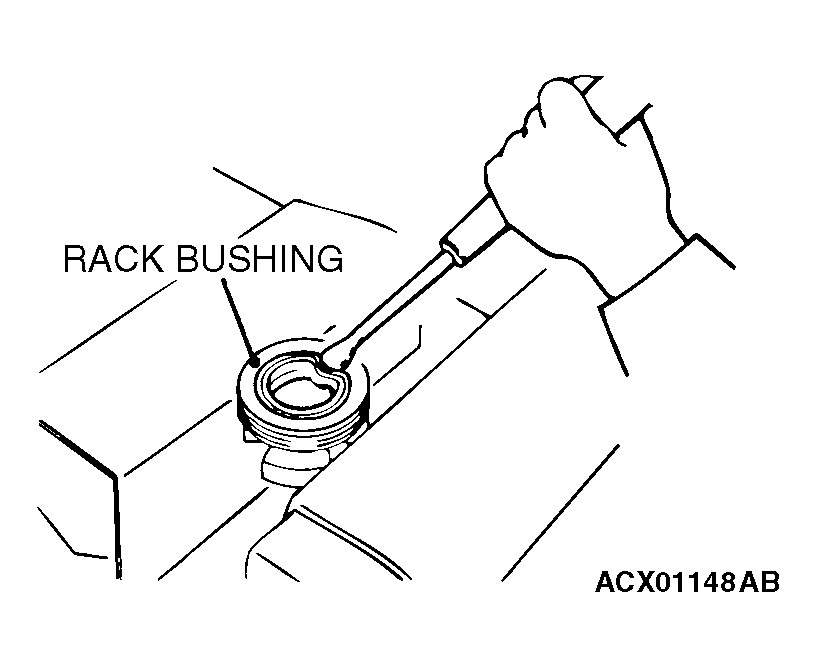

    Fig 2: Removing Rack Bushing
    G04267634Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
