Disassembly And Assembly: Notes

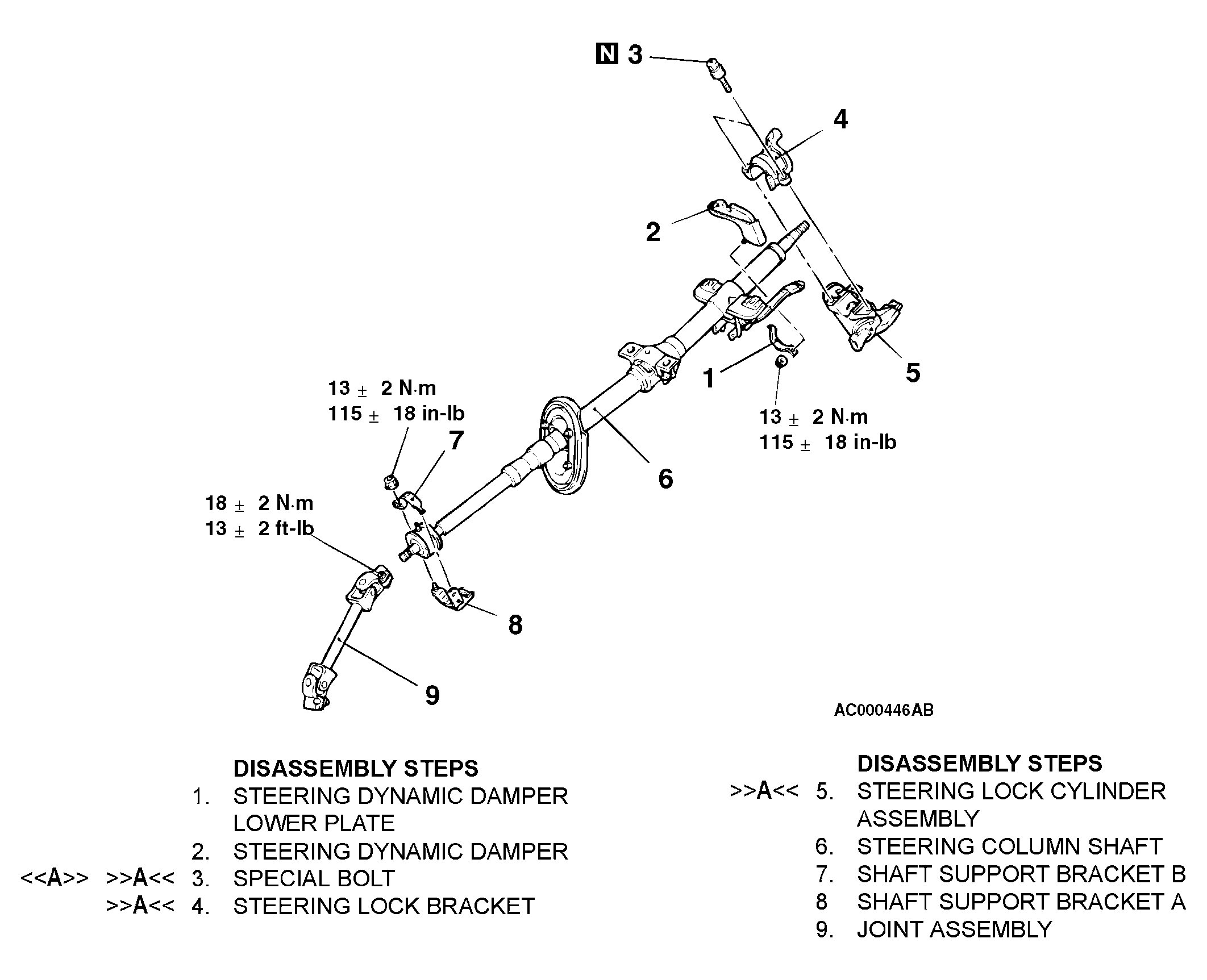

Fig 1: Disassembling And Assembling Steering Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
