INSPECTION PROCEDURE 17: Shift Switch Assembly System: Notes

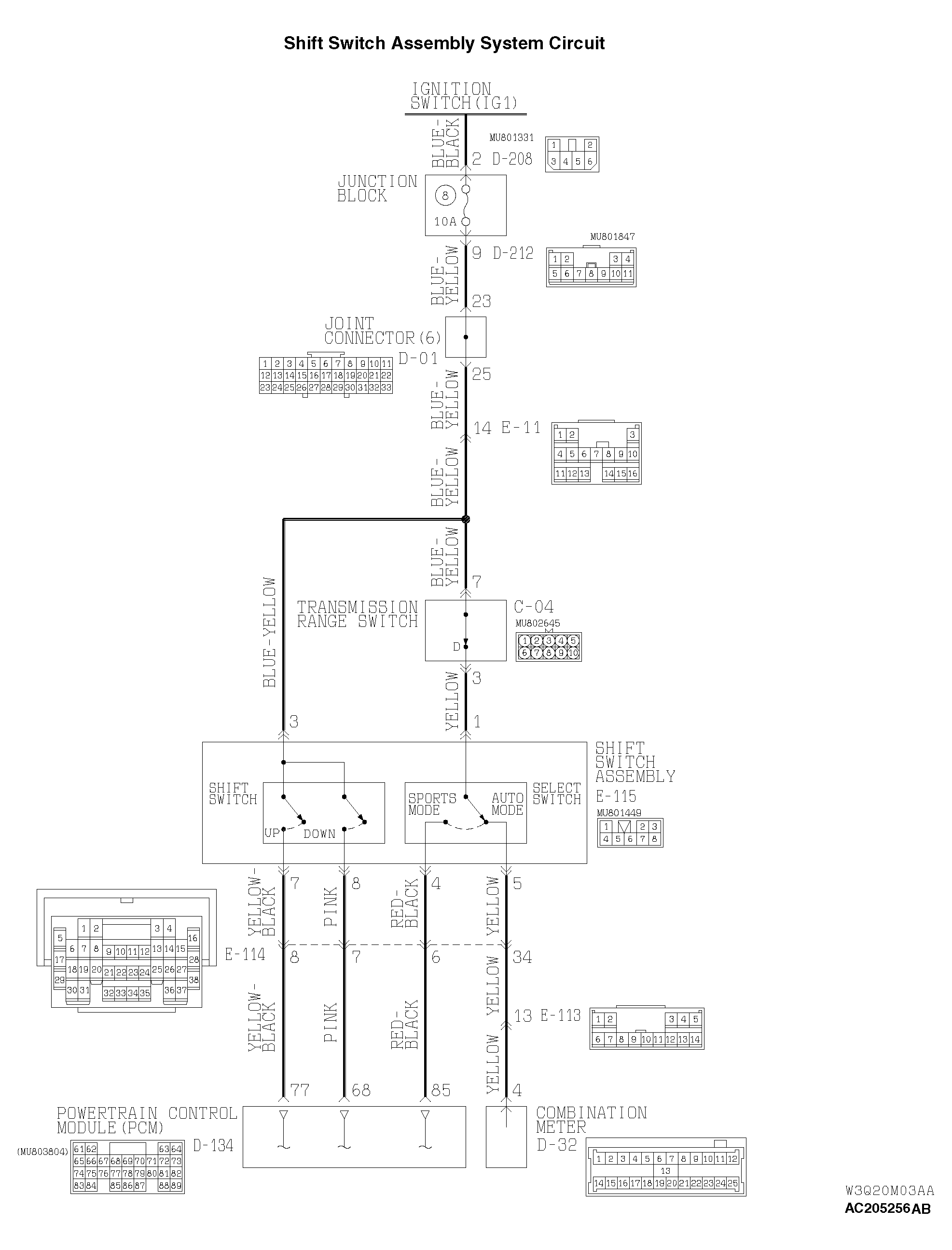

Fig 1: Shift Switch Assembly System Circuit Diagram
G04265880Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

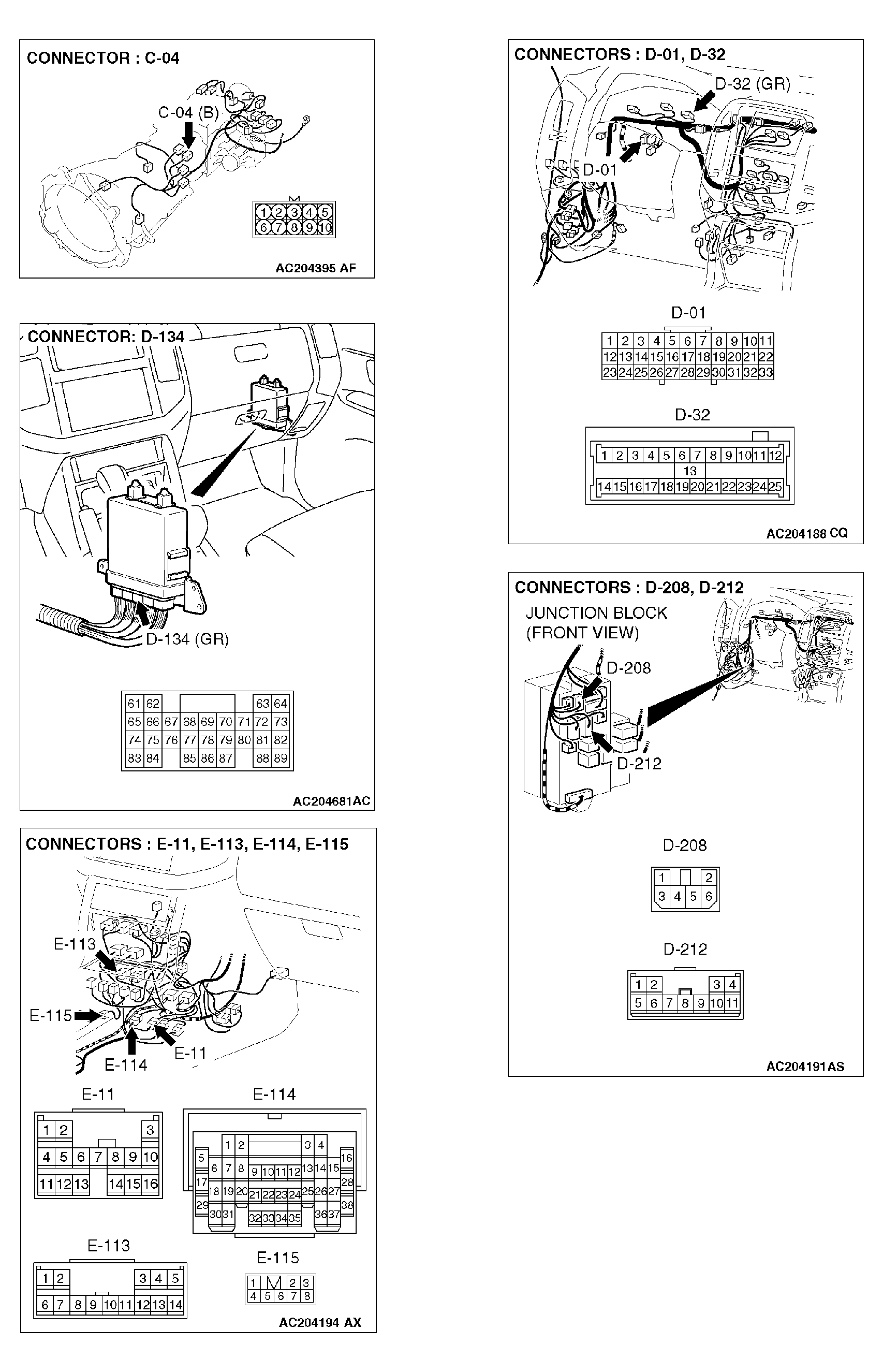

Fig 2: Locating Connectors
G04265881Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
