Actuator Test Specifications
ACTUATOR TEST SPECIFICATIONS

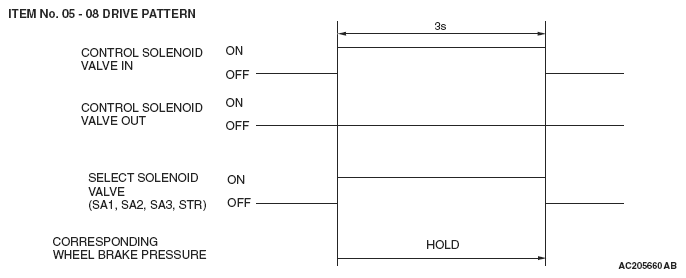

| MUT-III SCAN TOOL DISPLAY | ITEM NO. | CHECK ITEM | PARTS TO BE ACTIVATED | ACTIVATION WHEN THE SYSTEM FAILS |
|---|---|---|---|---|
| FR ACTIVE SKID CONTROL SYSTEM VALVE | 05 | Solenoid valve for front-right wheel | Active skid control system control solenoid valves for the respective channel | Disabled |
| FL ACTIVE SKID CONTROL SYSTEM VALVE | 06 | Solenoid valve for front-left wheel | ||
| RR ACTIVE SKID CONTROL SYSTEM VALVE | 07 | Solenoid valve for rear-right wheel | ||
| RL ACTIVE SKID CONTROL SYSTEM VALVE | 08 | Solenoid valve for rear-left wheel | ||
| HBB MOTOR | 11 | Pump motor | Drives the pump motor for one second. | Disabled |
| HBB BUZZER | 12 | Buzzer | Drives the buzzer for three seconds. | Disabled |
| ENG. TRQ DOWN | 13 | Engine | Engine torque reduction | Disabled |
| ST SNSR: 0 | 14 | Steering wheel sensor | Neutral point in steering wheel sensor | Enabled |
| YAWRATE SNS: 0 | 15 | Yaw rate sensor | Neutral point in yaw rate sensor | Enabled |
| G SNSR: 0 | 16 | G sensor | Neutral point in G sensor | Enabled |
| BRKE WARN LMP | 23 | Brake warning light | Blink two times the brake warning light. | Enabled (However, disabled when the brake warning light cannot be activated) |
| ABS FAIL LMP | 24 | ABS warning light | Blink two times ABS warning light | Enabled (However, disabled when the ABS warning light cannot be activated) |
| ACTIVE SKID CONTROL SYSTEM OP LAMP | 25 | Active skid control system operation indicator light/Active traction control system operation indicator light | Blink two times the Active skid control system operation indicator light/Active traction control system operation indicator light | Enabled (However, disabled when the Active skid control system operation indicator light/Active traction control system operation indicator light cannot be activated) |
| ACTIVE SKID CONTROL SYSTEM OFF LAMP | 26 | Active skid control system OFF indicator light | Blink two times the Active skid control system OFF indicator light | Enabled (However, disabled when the Active skid control system OFF indicator light cannot be activated) |
