DTC 35, 37, 78: Defective power control module: Notes

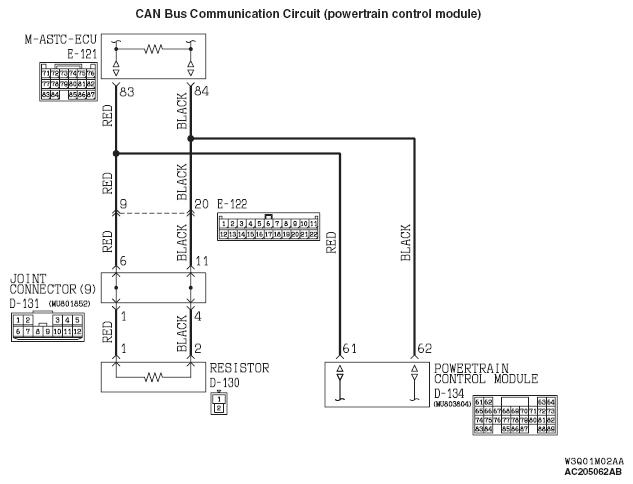

Fig 1: CAN Bus Communication Circuit Diagram (Power Control Module)
G04712127Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
