DTC 36, 38: Communication error in power control module: Notes

CAUTION: If the diagnostic trouble code(s), which indicate a communication error in the power control module, has been set, diagnose the CAN main bus line.

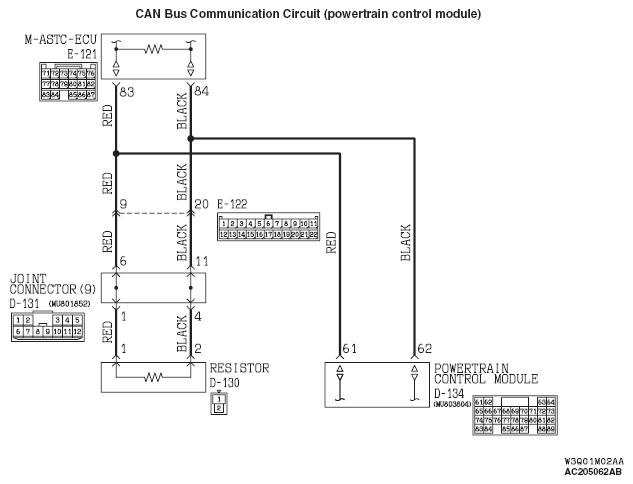

Fig 1: CAN Bus Communication Circuit Diagram (Power Control Module)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
