Special Tools

SPECIAL TOOLS DESCRIPTION

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION

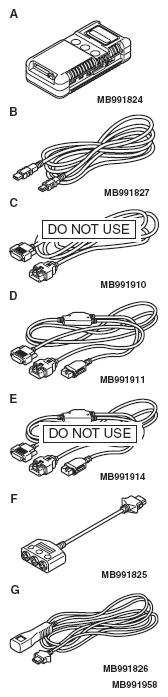

G04712468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

MUT-III Sub Assembly
  1. Vehicle communication interface (V.C.I.)
  2. MUT-III USB cable
  3. MUT-III main harness A (Vehicles with CAN communication system)
  4. MUT-III main harness B (Vehicles without CAN communication system)
  5. MUT-III main harness C (for Daimler Chrysler models only)
  6. MUT-III measurement adapter
  7. MUT-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.
 Checking diagnostic trouble codes
CAUTION: MUT-III main harness B (MB991911) should be used. MUT-III main harness A and C should not be used for this vehicle.
G04712469Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991348 Test harness set MB991496-OD For checking of G and yaw rate sensor
G04712470Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991223 Harness set
  1. MB991219 Inspection harness
 MB991223 MB991709-01 ABS sensor output voltage measurement
