Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Simplified Wiring System
>>
Symptom Procedures
>>
Keyless Entry System
>>
General Circuit Diagram For The Keyless Entry System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
General Circuit Diagram For The Keyless Entry System

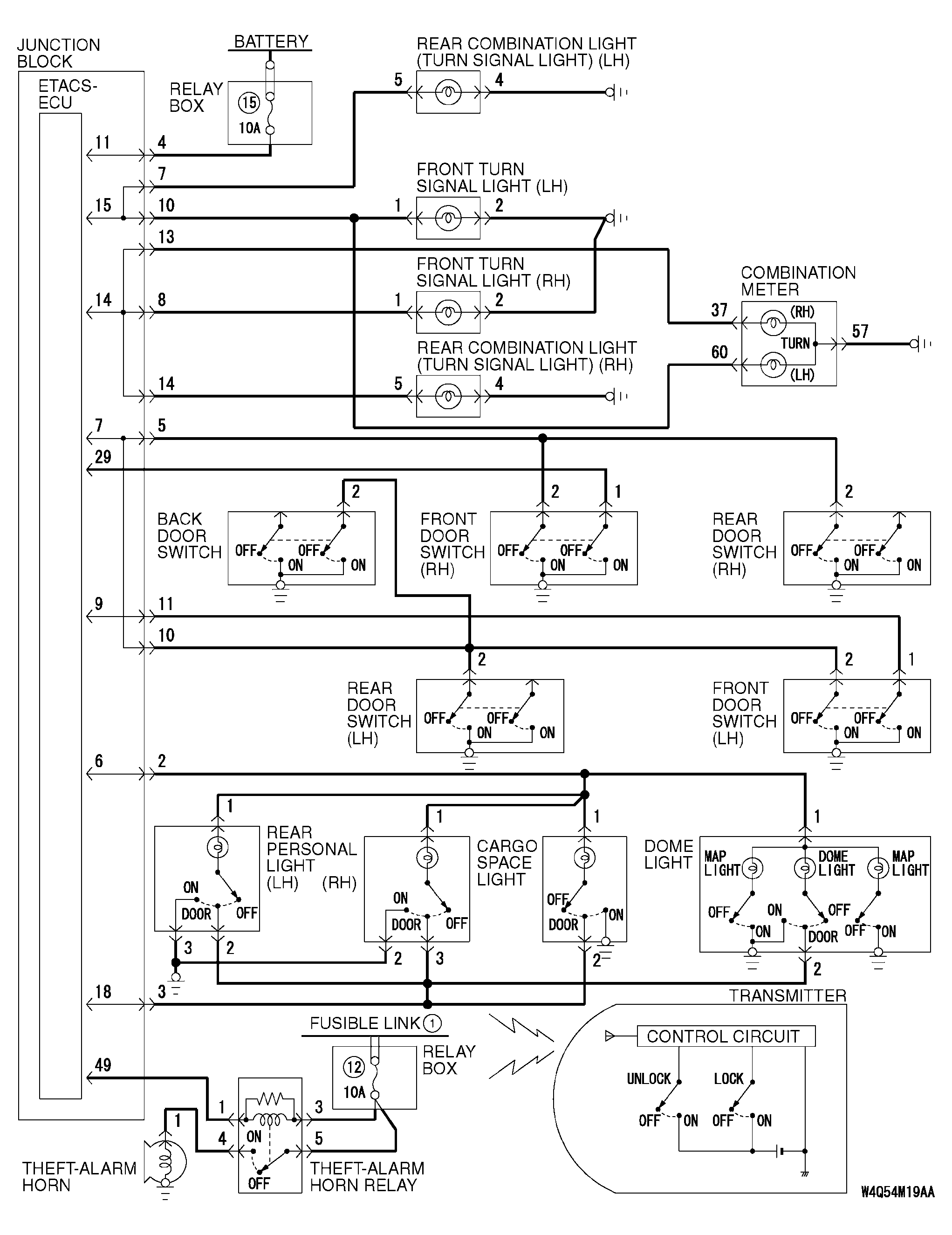

Fig 1: Keyless Entry System Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

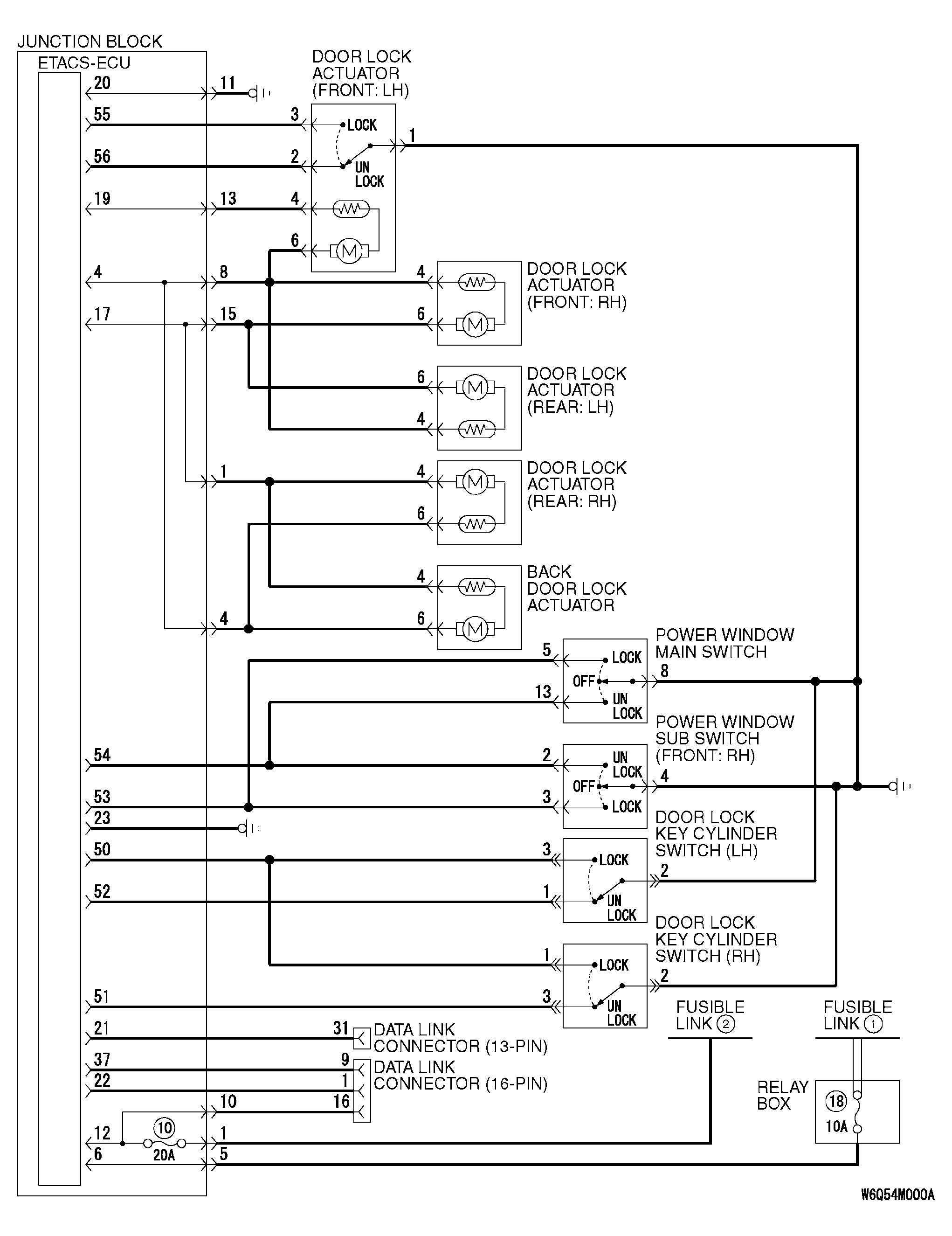

Fig 2: Keyless Entry System Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
