Removal And Installation

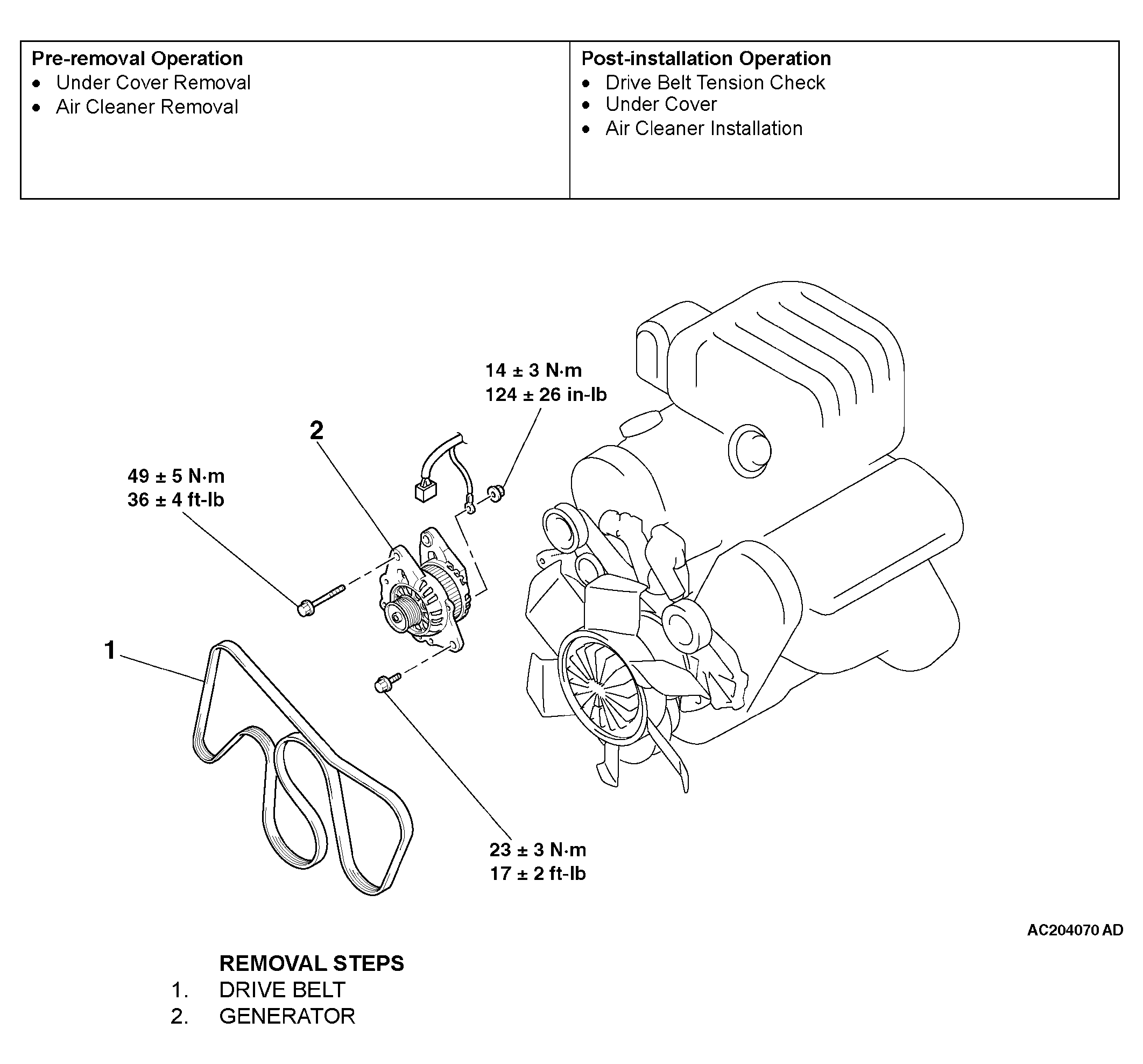

Fig 1: Removing/Installing Generator Assembly With Torque Specifications
G04265066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
