Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
On-Vehicle Service
>>
Wave Pattern Check Using An Oscilloscope
>>
Measurement Method
>>
Abnormal Waveforms
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Abnormal Waveforms

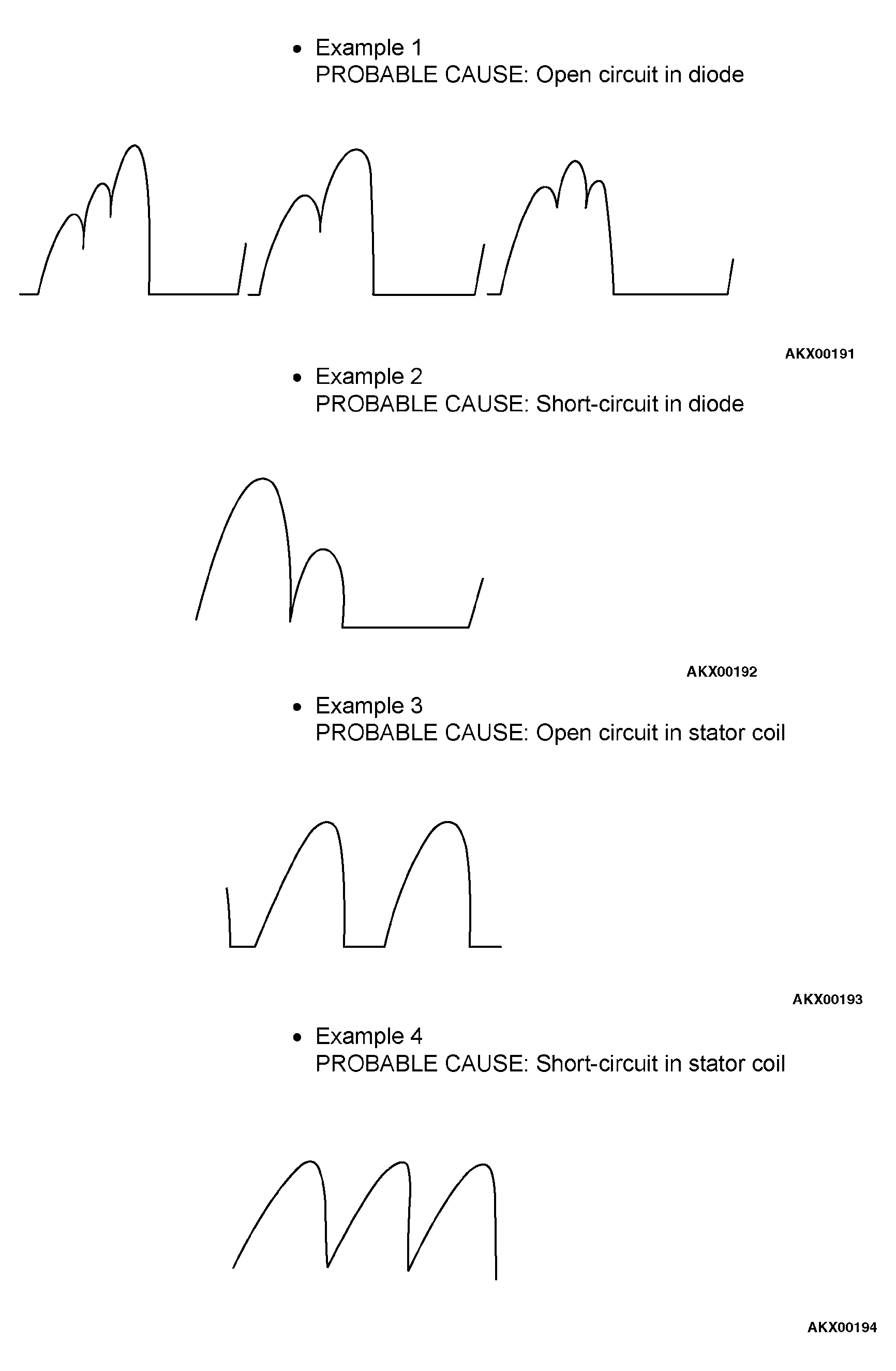

Fig 1: Waveforms Graphs
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
